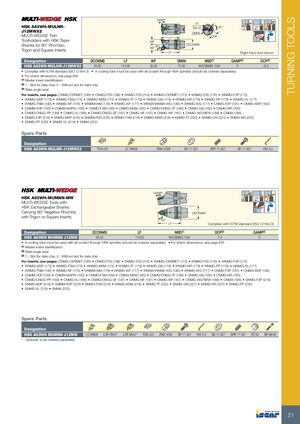

TURNING TOOLS GAMP 95º 6° 95° HSK A63WH-MULNR- Typ.x2 30° 95° 75º 95º J12MWX2 DMIN MULTI-WEDGE Twin WF LF Toolholders with HSK Taper WF Shanks for 80° Rhombic, DCONMS 95° WF Trigon and Square Inserts LF Right hand tool shown Designation DCONMS LF WF DMIN MIID(1) GAMP(3) DCP(2) HSK A63WH-MULNR-J12MWX2 63.00 110.00 35.00 72.00 W/C/SNMG 1204 0 -10.0 • Complies with ICTM standard (ISO 12164-3) • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). • For shank dimensions, see page 835 (1) Master insert identification (2) 1 - Slot for data chip, 0 - Without slot for data chip (3) Rake angle axial For inserts, see pages: CNMG-CERMET (183) • CNMG-F3S (186) • SNMG-F3S (219) • WNMG-CERMET (173) • WNMG-F3S (176) • WNMG-F3P (172) • WNMG-M3P (173) • WNMG-F3M (175) • WNMG-M3M (175) • WNMG-TF (178) • WNMG-GN (179) • WNMG-NR (179) • WNMG-PP (178) • WNMG-VL (177) • WNMG-TNM (180) • WNMG-NF (176) • WNMM-NM (179) • WNMG-WF (177) • WNMA/WNMA-WG (180) • WNMG-WG (177) • CNMG-F3P (181) • CNMG-M3P (182) • CNMM-R3P (192) • CNMM-M4PW (192) • CNMG-F3M (185) • CNMG-M3M (185) • CNMG/CNGG-TF (189) • CNMG-GN (190) • CNMG-NR (190) • CNMG/CNGG-PP (189) • CNMG-VL (186) • CNMG/CNGG-SF (187) • CNMG-NF (187) • CNMG-WF (187) • CNMG-WG/NRW (188) • CNMA (188) • SNMG-F3P (216) • SNMG-M3P (216) • SNMM-R3P (223) • SNMG-F3M (218) • SNMG-M3M (218) • SNMG-TF (220) • SNMG-GN (221) • SNMG-NR (222) • SNMG-PP (220) • SNMG-VL (219) • SNMA (222) Spare Parts Designation HSK A63WH-MULNR-J12MWX2 TCN 423 LC WN08 ZNW 4CMI DK 17-307 SPR 17-307 SR 17-307 HW 3.0 GAMP 95º 95° HSK A63WH-MUMNN-MW 95º 75º 95° MULTI-WEDGE Tools with HSK Exchangeable Shanks Carrying 80° Negative Rhombic DCONMS with Trigon or Square Inserts 50° LF Complies with ICTM standard (ISO 12164-3) Designation DCONMS LF MIID(1) DCP(3) GAMP(2) HSK A63WH MUMNN J12MW 63.00 110.00 W/C/SNMG 1204 -7.0 0 • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). • For shank dimensions, see page 835 (1) Master insert identification (2) Rake angle axial (3) 1 - Slot for data chip, 0 - Without slot for data chip For inserts, see pages: CNMG-CERMET (183) • CNMG-F3S (186) • SNMG-F3S (219) • WNMG-CERMET (173) • WNMG-F3S (176) • WNMG-F3P (172) • WNMG-M3P (173) • WNMG-F3M (175) • WNMG-M3M (175) • WNMG-TF (178) • WNMG-GN (179) • WNMG-NR (179) • WNMG-PP (178) • WNMG-VL (177) • WNMG-TNM (180) • WNMG-NF (176) • WNMM-NM (179) • WNMG-WF (177) • WNMA/WNMA-WG (180) • WNMG-WG (177) • CNMG-F3P (181) • CNMG-M3P (182) • CNMM-R3P (192) • CNMM-M4PW (192) • CNMG-F3M (185) • CNMG-M3M (185) • CNMG/CNGG-TF (189) • CNMG-GN (190) • CNMG-NR (190) • CNMG/CNGG-PP (189) • CNMG-VL (186) • CNMG/CNGG-SF (187) • CNMG-NF (187) • CNMG-WF (187) • CNMG-WG/NRW (188) • CNMA (188) • SNMG-F3P (216) • SNMG-M3P (216) • SNMM-R3P (223) • SNMG-F3M (218) • SNMG-M3M (218) • SNMG-TF (220) • SNMG-GN (221) • SNMG-NR (222) • SNMG-PP (220) • SNMG-VL (219) • SNMA (222) Spare Parts Designation HSK A63WH MUMNN J12MW LC WN08 LCR CN12* LCR SN12* TCN 423 ZNW 4CM SR 17-307 HW 3.0 DK 17-307 SPR 17-307 EZ 83 SR M4X8 * Optional, to be ordered separately 21
