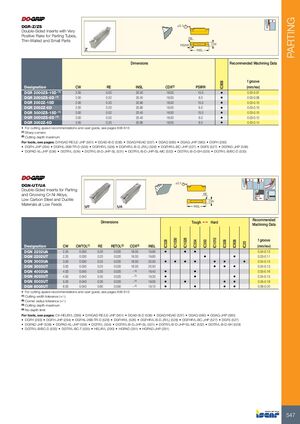

PARTING DGR-Z/ZS ±0.1 Double-Sided Inserts with Very Positive Rake for Parting Tubes, RE Thin-Walled and Small Parts PSIRR CW INSL Dimensions Recommended Machining Data f groove IC908 Designation CW RE INSL CDX(2) PSIRR (mm/rev) DGR 2000ZS-15D (1) 2.00 0.02 20.40 18.00 15.0 • 0.03-0.07 DGR 2000ZS-6D (1) 2.00 0.02 20.40 18.00 6.0 • 0.03-0.08 DGR 2002Z-15D 2.00 0.20 20.90 18.00 15.0 • 0.03-0.10 DGR 2002Z-6D 2.00 0.20 20.90 18.00 6.0 • 0.03-0.10 DGR 3000ZS-15D (1) 3.00 0.02 20.40 18.00 15.0 • 0.03-0.10 DGR 3000ZS-6D (1) 3.00 0.02 20.40 18.00 6.0 • 0.03-0.12 DGR 3002Z-6D 3.00 0.20 20.90 18.00 6.0 • 0.03-0.14 • For cutting speed recommendations and user guide, see pages 606-615 (1) Sharp corners (2) Cutting depth maximum For tools, see pages: D/HGAD RE/LE-JHP (561) • DGAD-B-D (538) • DGAD/HGAD (537) • DGAQ (580) • DGAQ-JHP (580) • DGFH (293) • DGFH-JHP (294) • DGFHL-26B-TR-D (528) • DGFHR/L (526) • DGFHR/L-B-D..(R/L) (528) • DGFHR/L-BC-JHP (527) • DGFS (527) • DGPAD-JHP (538) • DGPAD-XL-JHP (538) • DGTR/L (534) • DGTR/L-B-D-JHP-SL (531) • DGTR/L-B-D-JHP-SL-MC (532) • DGTR/L-B-D-SH (529) • DGTR/L-B/BC-D (533) ±0.1 DGN-UT/UA Double-Sided Inserts for Parting and Grooving Cr-Ni Alloys, RE Low Carbon Steel and Ductile CW Materials at Low Feeds INSL Recommended Dimensions Tough 1 Hard Machining Data f groove IC1030 IC1028 IC1010 IC328 IC354 IC350 IC308 IC908 Designation CW CWTOL(1) RE RETOL(2) CDX(3) INSL IC20 (mm/rev) DGN 2202UA 2.20 0.030 0.20 0.020 18.00 19.90 • • • 0.04-0.13 DGN 2202UT 2.20 0.030 0.20 0.020 18.00 19.60 • • 0.03-0.11 DGN 3003UA 3.00 0.030 0.25 0.020 18.00 20.50 • • • • • • • 0.04-0.15 DGN 3003UT 3.00 0.030 0.25 0.020 18.00 20.50 • • • 0.04-0.13 DGN 4003UA 4.00 0.040 0.30 0.020 - (4) 19.40 • • 0.05-0.16 DGN 4003UT 4.00 0.040 0.30 0.020 - (4) 19.30 • • • 0.04-0.15 DGN 5003UT 5.00 0.040 0.30 0.020 - (4) 19.00 • • • • 0.05-0.18 DGN 6008UT 6.00 0.040 0.80 0.050 - (4) 19.10 • • • • 0.06-0.20 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum (4) No depth limit For tools, see pages: C#-HELIR/L (289) • D/HGAD RE/LE-JHP (561) • DGAD-B-D (538) • DGAD/HGAD (537) • DGAQ (580) • DGAQ-JHP (580) • DGFH (293) • DGFH-JHP (294) • DGFHL-26B-TR-D (528) • DGFHR/L (526) • DGFHR/L-B-D..(R/L) (528) • DGFHR/L-BC-JHP (527) • DGFS (527) • DGPAD-JHP (538) • DGPAD-XL-JHP (538) • DGTR/L (534) • DGTR/L-B-D-JHP-SL (531) • DGTR/L-B-D-JHP-SL-MC (532) • DGTR/L-B-D-SH (529) • DGTR/L-B/BC-D (533) • DGTR/L-BC-T (535) • HELIR/L (290) • HGPAD (291) • HGPAD-JHP (291) 547
