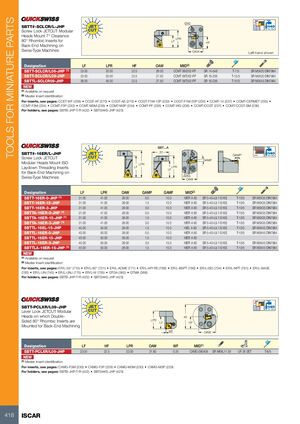

TOOLS FOR MINIATURE PARTS 95º Ø45 SBTT#-SCLCR/L-JHP Bar Max Screw Lock JETCUT Modular Heads Mount 7° Clearance LPR 80° Rhombic Inserts for LF HF Back-End Machining on Swiss-Type Machines OAW Left-hand shown Designation LF LPR HF OAW MIID(2) SBTT-SCLCR/L06-JHP (1) 23.00 33.00 22.5 28.00 CCMT 060202-PF SR 14-548 T-7/5 SR M5X30 DIN7984 SBTT-SCLCR/L09-JHP 23.00 33.00 22.5 27.50 CCMT 09T302-PF SR 16-236 T-15/5 SR M5X30 DIN7984 SBTTL-SCLCR09-JHP 39.00 49.00 22.5 27.50 CCMT 09T302-PF SR 16-236 T-15/5 SR M5X45 DIN7984 NEW (1) Available on request (2) Master insert identification For inserts, see pages: CCET-WF (238) • CCGT-AF (270) • CCGT-AS (270) • CCGT-F1M-12P (232) • CCGT-F1M-20P (233) • CCMT-14 (237) • CCMT-CERMET (235) • CCMT-F3M (234) • CCMT-F3P (233) • CCMT-M3M (235) • CCMT-M3P (234) • CCMT-PF (236) • CCMT-WG (238) • CCMT/CCGT (237) • CCMT/CCGT-SM (236) For holders, see pages: SBTB-JHP-T/R (422) • SBTS##S-JHP (423) SBT...A 31 SBTT#-16ER/L-JHP GAMP Bar Max Screw Lock JETCUT GAMF Modular Heads Mount ISO LPR Laydown Threading Inserts LF LPR LF for Back-End Machining on Ø45 Swiss-Type Machines OAW Designation LF LPR OAW GAMP GAMF MIID(2) SBTT-16ER-0-JHP (1) 31.00 41.00 28.00 0.0 10.0 16ER A 60 SR 5-40-L9.7-S16S T-10/5 SR M5X35 DIN7984 SBTT-16ER-15-JHP 31.00 41.00 28.00 1.5 10.0 16ER A 60 SR 5-40-L9.7-S16S T-10/5 SR M5X35 DIN7984 SBTT-16ER-3-JHP 31.00 41.00 28.00 3.0 10.0 16ER A 60 SR 5-40-L9.7-S16S T-10/5 SR M5X35 DIN7984 SBTTA-16ER-0-JHP (1) 31.00 41.00 28.00 0.0 10.0 16ER A 60 SR 5-40-L9.7-S16S T-10/5 SR M5X35 DIN7984 SBTTA-16ER-15-JHP (1) 31.00 41.00 28.00 1.5 10.0 16ER A 60 SR 5-40-L9.7-S16S T-10/5 SR M5X35 DIN7984 SBTTA-16ER-3-JHP (1) 31.00 41.00 28.00 3.0 10.0 16ER A 60 SR 5-40-L9.7-S16S T-10/5 SR M5X35 DIN7984 SBTTL-16EL-15-JHP 40.00 50.00 28.00 1.5 10.0 16EL A 60 SR 5-40-L9.7-S16S T-10/5 SR M5X45 DIN7984 SBTTL-16ER-0-JHP 40.00 50.00 28.00 0.0 10.0 16ER A 60 SR 5-40-L9.7-S16S T-10/5 SR M5X45 DIN7984 SBTTL-16ER-15-JHP 40.00 50.00 28.00 1.5 10.0 16ER A 60 SBTTL-16ER-3-JHP 40.00 50.00 28.00 3.0 10.0 16ER A 60 SR 5-40-L9.7-S16S T-10/5 SR M5X45 DIN7984 SBTTLA-16ER-15-JHP (1) 40.00 50.00 28.00 1.5 10.0 16ER A 60 SR 5-40-L9.7-S16S T-10/5 SR M5X45 DIN7984 NEW (1) Available on request (2) Master insert identification For inserts, see pages: ER/L-55° (715) • ER/L-60° (721) • ER/L-ACME (771) • ER/L-API RD (786) • ER/L-BSPT (766) • ER/L-ISO (734) • ER/L-NPT (761) • ER/L-SAGE (783) • ER/L-UN (745) • ER/L-UNJ (775) • ER/L-W (755) • GTGA (365) • GTMA (366) For holders, see pages: SBTB-JHP-T/R (422) • SBTS##S-JHP (423) 95º SBTT-PCLXR/L09-JHP Bar Max Lever Lock JETCUT Modular Heads on which Double- 45 Sided 80° Rhombic Inserts are LPR LF HF Mounted for Back-End Machining WF OAW Designation LF HF LPR OAW WF MIID(1) SBTT-PCLXR/L09-JHP 23.00 22.5 33.00 31.60 0.25 CXMG 090408 SR M6XL11.5V LR 3X SET T-8/5 NEW (1) Master insert identification For inserts, see pages: CXMG-F3M (230) • CXMG-F3P (229) • CXMG-M3M (230) • CXMG-M3P (229) For holders, see pages: SBTB-JHP-T/R (422) • SBTS##S-JHP (423) 418 ISCAR
