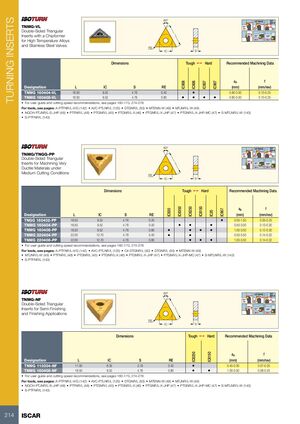

TURNING INSERTS 60° 22°MAX 55° MAX TNMG-VL 91º 93 º 60º Double-Sided Triangular 91º Inserts with a Chipformer L 91º 95º for High Temperature Alloys and Stainless Steel Valves RE IC S Dimensions Tough 1 Hard Recommended Machining Data ap f IC908 IC806 IC807 IC907 Designation L IC S RE (mm) (mm/rev) TNMG 160404-VL 16.50 9.52 4.76 0.40 • 0.80-3.50 0.10-0.25 TNMG 160408-VL 16.50 9.52 4.76 0.80 • • • • 0.80-3.50 0.10-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PTFNR/L-X/G (142) • AVC-PTLNR/L (125) • DTGNR/L (50) • MTENN-W (49) • MTJNR/L-W (49) • NQCH-PTJNR/L-S-JHP (48) • PTFNR/L (48) • PTGNR/L (45) • PTGNR/L-X (46) • PTGNR/L-X-JHP (47) • PTGNR/L-X-JHP-MC (47) • S-MTLNR/L-W (143) • S-PTFNR/L (143) 60° 22°MAX 55° MAX TNMG/TNGG-PP 91º 93 º 60º Double-Sided Triangular 91º Inserts for Machining Very L 91º 95º Ductile Materials under Medium Cutting Conditions RE IC S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8350 IC8250 IC8150 IC830 IC907 IC20 Designation L IC S RE (mm) (mm/rev) TNGG 160402-PP 16.50 9.52 4.76 0.20 • 0.50-1.50 0.05-0.25 TNMG 160404-PP 16.50 9.52 4.76 0.40 • • • 0.50-3.00 0.13-0.30 TNMG 160408-PP 16.50 9.52 4.76 0.80 • • • • 1.00-3.00 0.12-0.30 TNMG 220404-PP 22.00 12.70 4.76 0.40 • • 0.50-3.50 0.14-0.32 TNMG 220408-PP 22.00 12.70 4.76 0.80 • • • 1.00-3.50 0.14-0.32 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PTFNR/L-X/G (142) • AVC-PTLNR/L (125) • C#-DTGNR/L (50) • DTGNR/L (50) • MTENN-W (49) • MTJNR/L-W (49) • PTFNR/L (48) • PTGNR/L (45) • PTGNR/L-X (46) • PTGNR/L-X-JHP (47) • PTGNR/L-X-JHP-MC (47) • S-MTLNR/L-W (143) • S-PTFNR/L (143) 60° 22°MAX 55° MAX TNMG-NF 91º 93 º 60º Double-Sided Triangular 91º Inserts for Semi-Finishing L 91º 95º and Finishing Applications RE IC S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 Designation L IC S RE (mm) (mm/rev) TNMG 110304-NF 11.00 6.35 3.18 0.40 • 0.40-2.00 0.07-0.25 TNMG 160408-NF 16.50 9.52 4.76 0.80 • • 1.00-3.00 0.08-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PTFNR/L-X/G (142) • AVC-PTLNR/L (125) • DTGNR/L (50) • MTENN-W (49) • MTJNR/L-W (49) • NQCH-PTJNR/L-S-JHP (48) • PTFNR/L (48) • PTGNR/L (45) • PTGNR/L-X (46) • PTGNR/L-X-JHP (47) • PTGNR/L-X-JHP-MC (47) • S-MTLNR/L-W (143) • S-PTFNR/L (143) 214 ISCAR
