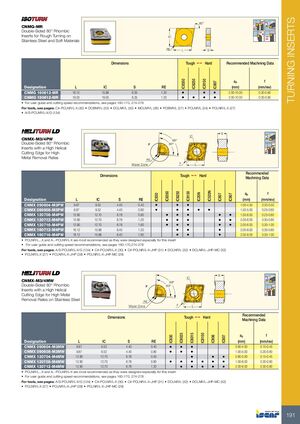

TURNING INSERTS 95º 80 ° CNMG-MR 95º 95º Double-Sided 80° Rhombic 75° Inserts for Rough Turning on IC 75º Stainless Steel and Soft Materials RE L S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8350 IC8250 IC8150 IC807 Designation L IC S RE (mm) (mm/rev) CNMG 160612-MR 16.12 15.88 6.35 1.20 • • • 2.00-10.00 0.30-0.90 CNMG 190612-MR 19.03 19.05 6.35 1.20 • • • • 2.00-10.00 0.30-0.90 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: C#-PCLNR/L-X (30) • DCBNR/L (33) • DCLNR/L (32) • MCLNR/L (26) • PCBNR/L (27) • PCLNR/L (24) • PCLNR/L-X (27) • A/S-PCLNR/L-X/G (134) S IC CNMX-M3/4PW 88º 95º Double-Sided 80° Rhombic F 80º 95º Inserts with a High Helical Cutting Edge for High 95º Metal Removal Rates RE Wiper Zone F L Recommended Dimensions Tough 1 Hard Machining Data IC520N ap f IC8350 IC8250 IC8150 IC20N IC830 IC807 IC907 Designation L IC S RE (mm) (mm/rev) CNMX 090604-M3PW 9.67 9.52 4.40 0.40 • • • 1.00-4.50 0.20-0.50 CNMX 090608-M3PW 9.67 9.52 4.40 0.80 • • • • • 1.50-5.00 0.25-0.60 CNMX 120708-M4PW 12.90 12.70 6.78 0.80 • • • • • 1.50-6.00 0.25-0.60 CNMX 120712-M4PW 12.90 12.70 6.78 1.20 • • • • • 2.00-6.00 0.30-0.80 CNMX 120716-M4PW 12.90 12.70 6.78 1.60 • • • • • 2.00-6.00 0.30-1.00 CNMX 160712-M4PW 16.12 15.88 6.40 1.20 • • • 2.00-8.00 0.30-0.80 CNMX 160716-M4PW 16.12 15.88 6.40 1.60 • • • 2.00-8.00 0.30-1.00 • PCLNR/L...X and A..-PCLNR/L-X are most recommended as they were designed especially for this insert • For user guide and cutting speed recommendations, see pages 160-170,274-278 For tools, see pages: A/S-PCLNR/L-X/G (134) • C#-PCLNR/L-X (30) • C#-PCLNR/L-X-JHP (31) • DCLNR/L (32) • DCLNR/L-JHP-MC (32) • PCLNR/L-X (27) • PCLNR/L-X-JHP (28) • PCLNR/L-X-JHP-MC (29) S IC CNMX-M3/4MW 88º 95º Double-Sided 80° Rhombic F 80º 95º Inserts with a High Helical Cutting Edge for High Metal 95º Removal Rates on Stainless Steel RE Wiper Zone F L Recommended Dimensions Tough 1 Hard Machining Data ap f IC6025 IC6015 IC8150 IC830 IC806 IC807 Designation L IC S RE (mm) (mm/rev) CNMX 090604-M3MW 9.67 9.52 4.40 0.40 • • • 0.80-4.00 0.15-0.45 CNMX 090608-M3MW 9.67 9.52 4.40 0.80 • • • 1.00-5.00 0.20-0.60 CNMX 120704-M4MW 12.90 12.70 6.78 0.40 • • • 0.80-5.00 0.15-0.45 CNMX 120708-M4MW 12.90 12.70 6.78 0.80 • • • • • • 1.00-6.00 0.20-0.60 CNMX 120712-M4MW 12.90 12.70 6.78 1.20 • • • • • 2.00-6.00 0.30-0.80 • PCLNR/L...X and A..-PCLNR/L-X are most recommended as they were designed especially for this insert • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PCLNR/L-X/G (134) • C#-PCLNR/L-X (30) • C#-PCLNR/L-X-JHP (31) • DCLNR/L (32) • DCLNR/L-JHP-MC (32) • PCLNR/L-X (27) • PCLNR/L-X-JHP (28) • PCLNR/L-X-JHP-MC (29) 191
