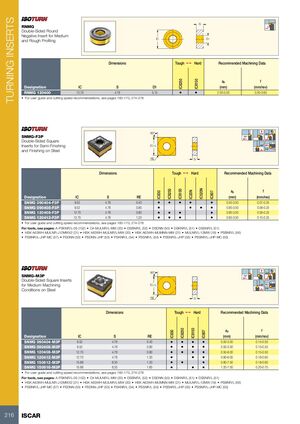

TURNING INSERTS S RNMG Double-Sided Round Negative Insert for Medium IC D1 and Rough Profiling Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 Designation IC S D1 (mm) (mm/rev) RNMG 120400 12.70 4.76 5.15 • • 2.00-5.00 0.30-0.60 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 45º 90° 75º 45º SNMG-F3P 75º Double-Sided Square Inserts for Semi-Finishing IC=L 45° 75º and Finishing on Steel RE S Dimensions Tough 1 Hard Recommended Machining Data IC520N ap f IC8250 IC8150 IC20N IC830 IC807 Designation IC S RE (mm) (mm/rev) SNMG 090404-F3P 9.52 4.76 0.40 • • • • • 0.50-3.50 0.07-0.25 SNMG 090408-F3P 9.52 4.76 0.80 • • • • 0.90-3.50 0.08-0.25 SNMG 120408-F3P 12.70 4.76 0.80 • • • • 0.90-3.50 0.08-0.25 SNMG 120412-F3P 12.70 4.76 1.20 • • • • 0.90-3.50 0.10-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PSKNR/L-09 (152) • C#-MULNR/L-MW (20) • DSBNR/L (52) • DSDNN (50) • DSKNR/L (51) • DSSNR/L (51) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • PSBNR/L (56) • PSBNR/L-JHP-MC (57) • PSDNN (53) • PSDNN-JHP (53) • PSKNR/L (54) • PSSNR/L (54) • PSSNR/L-JHP (55) • PSSNR/L-JHP-MC (55) 45º 90° 75º 45º SNMG-M3P 75º Double-Sided Square Inserts for Medium Machining IC=L 45° 75º Conditions on Steel RE S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 IC830 IC807 Designation IC S RE (mm) (mm/rev) SNMG 090404-M3P 9.52 4.76 0.40 • • • • 0.50-3.50 0.15-0.50 SNMG 090408-M3P 9.52 4.76 0.80 • • • • 0.50-3.50 0.15-0.55 SNMG 120408-M3P 12.70 4.76 0.80 • • • • 0.50-6.00 0.15-0.50 SNMG 120412-M3P 12.70 4.76 1.20 • • • 0.80-6.00 0.18-0.60 SNMG 150612-M3P 15.88 6.35 1.20 • • • 0.80-7.50 0.18-0.60 SNMG 150616-M3P 15.88 6.35 1.60 • • • 1.20-7.50 0.20-0.70 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PSKNR/L-09 (152) • C#-MULNR/L-MW (20) • DSBNR/L (52) • DSDNN (50) • DSKNR/L (51) • DSSNR/L (51) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • PSBNR/L (56) • PSBNR/L-JHP-MC (57) • PSDNN (53) • PSDNN-JHP (53) • PSKNR/L (54) • PSSNR/L (54) • PSSNR/L-JHP (55) • PSSNR/L-JHP-MC (55) 216 ISCAR
