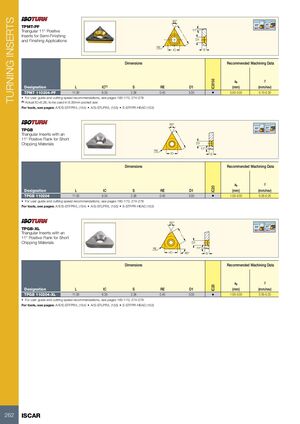

TURNING INSERTS 60° 95º 91º TPMT-PF Triangular 11° Positive 11° Inserts for Semi-Finishing L and Finishing Applications D1 RE IC S Dimensions Recommended Machining Data ap f IC8150 Designation L IC(1) S RE D1 (mm) (mm/rev) TPMT 110204-PF 11.00 6.35 2.38 0.40 3.00 • 0.50-3.00 0.10-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 (1) Actual IC=6.28, to be used in 6.35mm pocket size For tools, see pages: A/E/S-STFPR/L (154) • A/S-STLPR/L (155) • E-STFPR-HEAD (153) 60° 95º 91º TPGB Triangular Inserts with an 11° Positive Flank for Short L Chipping Materials D1 11° RE IC S Dimensions Recommended Machining Data ap f IC20 Designation L IC S RE D1 (mm) (mm/rev) TPGB 110204 11.00 6.35 2.38 0.40 3.00 • 1.00-3.00 0.05-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/E/S-STFPR/L (154) • A/S-STLPR/L (155) • E-STFPR-HEAD (153) 60° 95º 91º TPGB-XL Triangular Inserts with an L 11° Positive Flank for Short Chipping Materials D1 RE 11° IC 80° S Dimensions Recommended Machining Data ap f IC20 Designation L IC S RE D1 (mm) (mm/rev) TPGB 110204-XL 11.00 6.35 2.38 0.40 3.00 • 1.00-3.00 0.05-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/E/S-STFPR/L (154) • A/S-STLPR/L (155) • E-STFPR-HEAD (153) 262 ISCAR
