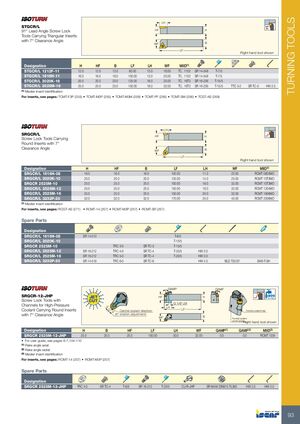

TURNING TOOLS LH STGCR/L 91º 91° Lead Angle Screw Lock HF H Tools Carrying Triangular Inserts with 7° Clearance Angle B WF LF Right hand tool shown Designation H HF B LF LH WF MIID(1) STGCR/L 1212F-11 12.0 12.0 12.0 80.00 13.0 16.00 TC.. 1102 SR 14-548 T-7/5 STGCR/L 1616H-11 16.0 16.0 16.0 100.00 13.0 20.00 TC.. 1102 SR 14-548 T-7/5 STGCR/L 2020K-16 20.0 20.0 20.0 125.00 18.0 25.00 TC.. 16T3 SR 16-236 T-15/5 STGCR/L 2525M-16 25.0 25.0 25.0 150.00 18.0 32.00 TC.. 16T3 SR 16-236 T-15/5 TTC 3-2 SR TC-3 HW 2.5 (1) Master insert identification For inserts, see pages: TCMT-F3P (255) • TCMT-M3P (255) • TCMT-M3M (256) • TCMT-PF (256) • TCMT-SM (256) • TCGT-AS (269) LH SRGCR/L HF H Screw Lock Tools Carrying Round Inserts with 7° Clearance Angle B WF LF Right hand tool shown Designation H HF B LF LH WF MIID(1) SRGCR/L 1616H-08 16.0 16.0 16.0 100.00 11.0 20.00 RCMT 0803MO SRGCR/L 2020K-10 20.0 20.0 20.0 125.00 14.0 25.00 RCMT 10T3MO SRGCR 2525M-10 25.0 25.0 25.0 150.00 18.0 32.00 RCMT 10T3MO SRGCR/L 2525M-12 25.0 25.0 25.0 150.00 18.0 32.00 RCMT 1204MO SRGCR/L 2525M-16 25.0 25.0 25.0 150.00 20.0 32.00 RCMT 1606MO SRGCR/L 3232P-20 32.0 32.0 32.0 170.00 25.0 40.00 RCMT 2006MO (1) Master insert identification For inserts, see pages: RCGT-AS (271) • RCMT-14 (257) • RCMT-M3P (257) • RCMT-SR (257) Spare Parts Designation SRGCR/L 1616H-08 SR 14-513 T-8/5 SRGCR/L 2020K-10 T-15/5 SRGCR 2525M-10 TRC 3-0 SR TC-3 T-15/5 SRGCR/L 2525M-12 SR 16-212 TRC 4-0 SR TC-4 T-20/5 HW 3.0 SRGCR/L 2525M-16 SR 16-212 TRC 5-0 SR TC-4 T-20/5 HW 3.0 SRGCR/L 3232P-20 SR 14-519 TRC 6-0 SR TC-6 HW 4.0 BLD T20/S7 SW6-T-SH GAMP GAMF SRGCR-12-JHP HF H Bar Max Screw Lock Tools with G 1/8"-28 Channels for High-Pressure 4° LH Coolant Carrying Round Inserts Central coolant direction LF Frontal coolant hole 4° with 7° Clearance Angle (8° rotation adjustment) WF B Frontal coolant on/off screw Right hand tool shown Designation H B HF LF LH WF GAMP(1) GAMF(2) MIID(3) SRGCR 2525M-12-JHP 25.0 25.0 25.0 150.00 30.0 32.00 0.0 0.0 RCMT 1204 • For user guide, see pages 6-7,104-110 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: RCMT-14 (257) • RCMT-M3P (257) Spare Parts Designation SRGCR 2525M-12-JHP TRC 4-0 SR TC-4 T-8/5 SR 16-212 T-20/5 CU-R-JHP SR M4X4 DIN913 TL360 HW 2.0 HW 3.0 93
