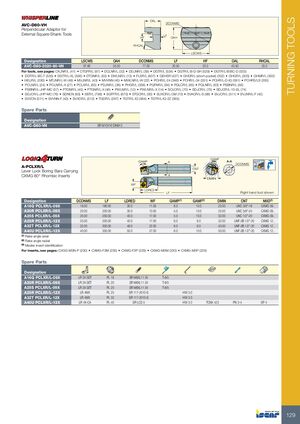

TURNING TOOLS OAL DCONMS AVC-D80-VH Perpendicular Adaptor for External Square-Shank Tools LF HF OAH RHCAL LSCWS Designation LSCWS OAH DCONMS LF HF OAL RHCAL AVC-D80-2020-80-VH 67.80 55.50 77.00 20.50 20.0 40.50 25.0 For tools, see pages: CKJNR/L (41) • CTGPR/L (97) • DCLNR/L (32) • DDJNR/L (39) • DGTR/L (534) • DGTR/L-B-D-SH (529) • DGTR/L-B/BC-D (533) • DGTR/L-BC-T (535) • DGTR/L-XL (536) • DTGNR/L (50) • DWLNR/L (13) • FLSR/L (807) • GEHSR (427) • GHDR/L (short pocket) (302) • GHGR/L (305) • GHMR/L (300) • HELIR/L (290) • MTJNR/L-W (49) • MVJNR/L (43) • MVVNN (45) • MWLNR/L-W (22) • PCHR/L-24 (346) • PCHR/L-34 (351) • PCHR/L-D-IQ (591) • PCHRS/LS (350) • PCLNR/L (24) • PCLNR/L-X (27) • PCLXR/L (65) • PDJNR/L (36) • PHGR/L (338) • PQFNR/L (64) • PQLCR/L (95) • PQLNR/L (63) • PSBNR/L (56) • PSBNR/L-JHP-MC (57) • PTGNR/L (45) • PTGNR/L-X (46) • PWLNR/L (12) • PWLNR/L-X (14) • SCLCR/L (70) • SDJCR/L (75) • SDJCR/L-13-SL (74) • SDJCR/L-JHP-MC (76) • SDNCN (83) • SER/L (798) • SGFFR/L (670) • STGCR/L (93) • SUXCR/L-CM (70) • SVACR/L-S (88) • SVJCR/L (511) • SVJNR/L-F (42) • SVVCN (511) • SVVNN-F (43) • SVXCR/L (512) • TGDR/L (297) • TGTR/L-IQ (564) • TGTR/L-IQ-2Z (565) Spare Parts Designation AVC-D80-VH SR M10X16 DIN913 GAMF GAMP A A-A DCONMS A-PCLXR/L CNT 95º Lever Lock Boring Bars Carrying CXMG 80° Rhombic Inserts A DMIN WF LDRED LF Right hand tool shown Designation DCONMS LF LDRED WF GAMP(1) GAMF(2) DMIN CNT MIID(3) A16Q PCLXR/L-09X 16.00 180.00 30.0 11.00 8.0 10.0 20.00 UNC 3/8"-16 CXMG 09.. A20R PCLXR/L-09X 20.00 200.00 30.0 13.00 5.0 10.0 25.00 UNC 3/8"-24 CXMG 09.. A25S PCLXR/L-09X 25.00 250.00 40.0 17.00 5.0 10.0 32.00 UNC 1/2"-20 CXMG 09.. A25R PCLXR/L-12X 25.00 200.00 40.0 17.00 6.0 9.0 32.00 UNF-2B 1/2"-20 CXMG 12.. A32T PCLXR/L-12X 32.00 300.00 48.0 22.00 6.0 9.0 40.00 UNF-2B 1/2"-20 CXMG 12.. A40U PCLXR/L-12X 40.00 350.00 50.0 27.00 6.0 10.0 50.00 UNF-2B 1/2"-20 CXMG 12.. (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: CXGG-M3N-P (230) • CXMG-F3M (230) • CXMG-F3P (229) • CXMG-M3M (230) • CXMG-M3P (229) Spare Parts Designation A16Q PCLXR/L-09X LR 3X SET PL 16 SR M6XL11.5V T-8/5 A20R PCLXR/L-09X LR 3X SET PL 20 SR M6XL11.5V T-8/5 A25S PCLXR/L-09X LR 3X SET PL 25 SR M6XL11.5V T-8/5 A25R PCLXR/L-12X LR 4MX PL 25 SR 117-2010-S HW 3.0 A32T PCLXR/L-12X LR 4MX PL 32 SR 117-2010-S HW 3.0 A40U PCLXR/L-12X LR 4X-CA PL 40 SR LCS 5 HW 3.0 TCNX 423 PN 3-4 SP 4 129
