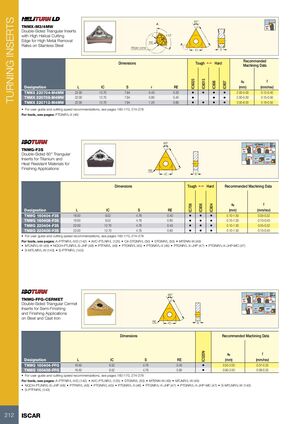

TURNING INSERTS 60° A TNMX-M3/4MW 91º Double-Sided Triangular Inserts with High Helical Cutting r 113˚ L Edge for High Metal Removal RE Rates on Stainless Steel A Wiper zone IC S Recommended Dimensions Tough 1 Hard Machining Data ap f IC6025 IC6015 IC806 IC807 Designation L IC S r RE (mm) (mm/rev) TNMX 220704-M4MW 22.00 12.70 7.94 0.40 0.20 • • • • 2.00-5.00 0.12-0.40 TNMX 220708-M4MW 22.00 12.70 7.94 0.80 0.40 • • • 2.50-5.50 0.15-0.50 TNMX 220712-M4MW 22.00 12.70 7.94 1.20 0.60 • • • • 3.00-6.00 0.18-0.50 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: PTGNR/L-X (46) 60° 22°MAX 55° MAX TNMG-F3S 91º 93 º 60º Double-Sided 60° Triangular 91º Inserts for Titanium and L 91º 95º Heat Resistant Materials for Finishing Applications RE IC S Dimensions Tough 1 Hard Recommended Machining Data ap f IC706 IC806 Designation L IC S RE IC804 (mm) (mm/rev) TNMG 160404-F3S 16.50 9.52 4.76 0.40 • • • 0.10-1.50 0.05-0.32 TNMG 160408-F3S 16.50 9.52 4.76 0.80 • • • 0.10-1.50 0.10-0.40 TNMG 220404-F3S 22.00 12.70 4.76 0.40 • • • 0.10-1.50 0.05-0.32 TNMG 220408-F3S 22.00 12.70 4.76 0.80 • • • 0.10-1.50 0.10-0.40 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PTFNR/L-X/G (142) • AVC-PTLNR/L (125) • C#-DTGNR/L (50) • DTGNR/L (50) • MTENN-W (49) • MTJNR/L-W (49) • NQCH-PTJNR/L-S-JHP (48) • PTFNR/L (48) • PTGNR/L (45) • PTGNR/L-X (46) • PTGNR/L-X-JHP (47) • PTGNR/L-X-JHP-MC (47) • S-MTLNR/L-W (143) • S-PTFNR/L (143) 22°MAX 55° 60° MAX TNMG-FFG-CERMET 91º 93 º 60º Double-Sided Triangular Cermet 91º Inserts for Semi-Finishing L 91º 95º and Finishing Applications on Steel and Cast Iron RE IC S Dimensions Recommended Machining Data IC520N ap f Designation L IC S RE (mm) (mm/rev) TNMG 160404-FFG 16.50 9.52 4.76 0.40 • 0.50-2.00 0.07-0.25 TNMG 160408-FFG 16.50 9.52 4.76 0.80 • 0.90-2.50 0.08-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PTFNR/L-X/G (142) • AVC-PTLNR/L (125) • DTGNR/L (50) • MTENN-W (49) • MTJNR/L-W (49) • NQCH-PTJNR/L-S-JHP (48) • PTFNR/L (48) • PTGNR/L (45) • PTGNR/L-X (46) • PTGNR/L-X-JHP (47) • PTGNR/L-X-JHP-MC (47) • S-MTLNR/L-W (143) • S-PTFNR/L (143) 212 ISCAR
