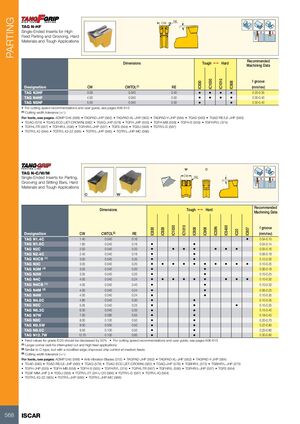

PARTING RE CW TAG N-HF 7° Single-Ended Inserts for High Feed Parting and Grooving, Hard Materials and Tough Applications Recommended Dimensions Tough 1 Hard Machining Data f groove IC1030 IC1010 IC830 IC808 Designation CW CWTOL(1) RE (mm/rev) TAG N3HF 3.00 0.040 0.40 • • • • 0.25-0.35 TAG N4HF 4.00 0.040 0.50 • • • • 0.30-0.40 TAG N5HF 5.00 0.040 0.50 • • 0.30-0.40 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) For tools, see pages: ADMP D45 (586) • TAGPAD-JHP (562) • TAGPAD-XL-JHP (562) • TAGPAD-Y-JHP (584) • TGAD (560) • TGAD RE/LE-JHP (560) • TGAQ (579) • TGAQ-ECD (JET-CROWN) (582) • TGAQ-JHP (578) • TGFH-JHP (555) • TGFH-MB (559) • TGFH-S (555) • TGFH/R/L (374) • TGFHL-TR (567) • TGFHR/L (556) • TGFHR/L-JHP (557) • TGFS (564) • TGSU (558) • TGTR/L-D (567) • TGTR/L-IQ (564) • TGTR/L-IQ-2Z (565) • TGTR/L-JHP (565) • TGTR/L-JHP-MC (566) W C TAG N-C/W/M CW Single-Ended Inserts for Parting, RE 7º Grooving and Slitting Bars, Hard Materials and Tough Applications Recommended Dimensions Tough 1 Hard Machining Data f groove IC1030 IC1010 IC5400 IC30N IC830 IC928 IC808 IC908 IC807 IC20 Designation CW CWTOL(3) RE (mm/rev) TAG N1.4C 1.40 0.040 0.16 • 0.04-0.10 TAG N1.6C 1.60 0.040 0.16 • • 0.04-0.14 TAG N2C 2.00 0.040 0.20 • • • • • • • 0.05-0.16 TAG N2.4C 2.40 0.040 0.16 • • 0.06-0.18 TAG N3CB (1) 3.00 0.040 0.35 • • 0.12-0.30 TAG N3C 3.05 0.040 0.20 • • • • • • • • • • 0.10-0.25 TAG N3M (2) 3.05 0.040 0.20 • • 0.06-0.18 TAG N3W 3.05 0.040 0.20 • • 0.10-0.25 TAG N4C 4.00 0.040 0.24 • • • • • • • • • 0.10-0.30 TAG N4CB (1) 4.00 0.040 0.40 • • 0.10-0.33 TAG N4M (2) 4.00 0.040 0.24 • • 0.06-0.20 TAG N4W 4.00 0.040 0.24 • • 0.10-0.30 TAG N4.8C 4.80 0.040 0.30 • • 0.10-0.35 TAG N5C 5.05 0.040 0.25 • • • 0.10-0.35 TAG N6.3C 6.30 0.040 0.35 • • 0.15-0.40 TAG N7W 7.00 0.080 0.50 • • 0.18-0.40 TAG N8C 8.00 0.100 0.50 • • 0.20-0.70 TAG N9.5W 9.50 0.050 0.50 • • 0.22-0.80 TAG N9.5C 9.50 0.100 0.50 • • 0.25-0.80 TAG N12.7W 12.70 0.100 0.85 • • 0.30-0.80 • Feed values for grade IC20 should be decreased by 50% • For cutting speed recommendations and user guide, see pages 606-615 (1) Larger corner radii for interrupted cut and high feed applications (2) Similar to C-type, but with a modified edge; improved chip control at medium feeds (3) Cutting width tolerance (+/-) For tools, see pages: ADMP D45 (586) • Anti-Vibration Blades (312) • TAGPAD-JHP (562) • TAGPAD-XL-JHP (562) • TAGPAD-Y-JHP (584) • TGAD (560) • TGAD RE/LE-JHP (560) • TGAQ (579) • TGAQ-ECD (JET-CROWN) (582) • TGAQ-JHP (578) • TGBHR/L (372) • TGBHR/L-JHP (373) • TGFH-JHP (555) • TGFH-MB (559) • TGFH-S (555) • TGFH/R/L (374) • TGFHL-TR (567) • TGFHR/L (556) • TGFHR/L-JHP (557) • TGFS (564) • TGSF-MM-JHP () • TGSU (558) • TGTR/L-2T..SH-L120 (566) • TGTR/L-D (567) • TGTR/L-IQ (564) • TGTR/L-IQ-2Z (565) • TGTR/L-JHP (565) • TGTR/L-JHP-MC (566) 568 ISCAR
