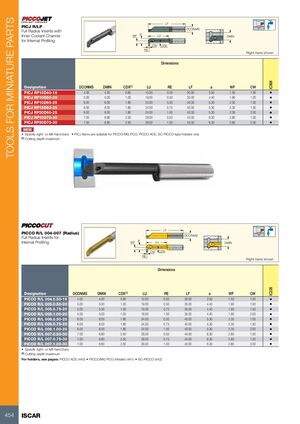

TOOLS FOR MINIATURE PARTS LF PICJ R/LP DCONMS Full Radius Inserts with a Inner Coolant Channel WF LU DMIN for Internal Profiling CW CDX RE Right-hand shown Dimensions IC908 Designation DCONMS DMIN CDX(1) LU RE LF a WF CW PICJ RP10D40-16 4.00 4.00 0.80 15.00 0.50 30.00 3.50 1.50 1.00 • PICJ RP10D50-20 5.00 5.00 1.00 19.00 0.50 35.00 4.40 1.90 1.00 • PICJ RP10D60-25 6.00 6.00 1.80 24.00 0.50 40.00 5.30 2.30 1.00 • PICJ RP15D60-25 6.00 6.00 1.80 24.00 0.75 40.00 5.30 2.30 1.50 • PICJ RP20D60-25 6.00 6.00 1.80 24.00 1.00 40.00 5.30 2.30 2.00 • PICJ RP10D70-30 7.00 6.80 2.50 29.00 0.50 45.00 6.30 2.80 1.00 • PICJ RP20D70-30 7.00 6.80 2.50 29.00 1.00 45.00 6.30 2.80 2.00 • NEW • Specify right- or left-hand bars • PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only (1) Cutting depth maximum LF PICCO R/L 004-007 (Radius) DCONMS Full Radius Inserts for a Internal Profiling WF LU DMIN CW CDX RE Right-hand shown Dimensions IC228 Designation DCONMS DMIN CDX(1) LU RE LF a WF CW PICCO R/L 004.0.50-16 4.00 4.00 0.80 15.00 0.50 30.00 3.50 1.50 1.00 • PICCO R/L 005.0.50-20 5.00 5.00 1.00 19.00 0.50 35.00 4.40 1.90 1.00 • PICCO R/L 005.0.75-20 5.00 5.00 1.00 19.00 0.75 35.00 4.40 1.90 1.50 • PICCO R/L 005.1.00-20 5.00 5.00 1.00 19.00 1.00 35.00 4.40 1.90 2.00 • PICCO R/L 006.0.50-25 6.00 6.00 1.80 24.00 0.50 40.00 5.30 2.30 1.00 • PICCO R/L 006.0.75-25 6.00 6.00 1.80 24.00 0.75 40.00 5.30 2.30 1.50 • PICCO R/L 006.1.00-25 6.00 6.00 1.80 24.00 1.00 40.00 5.30 2.30 2.00 • PICCO R/L 007.0.50-30 7.00 6.80 2.50 29.00 0.50 45.00 6.30 2.80 1.00 • PICCO R/L 007.0.75-30 7.00 6.80 2.50 29.00 0.75 45.00 6.30 2.80 1.50 • PICCO R/L 007.1.00-30 7.00 6.80 2.50 29.00 1.00 45.00 6.30 2.80 2.00 • • Specify right- or left-hand bars (1) Cutting depth maximum For holders, see pages: PICCO ACE (440) • PICCO/MG PCO (Holder) (441) • SC-PICCO (442) 454 ISCAR
