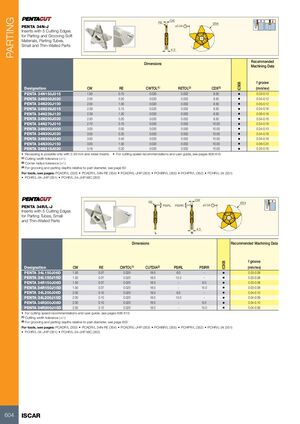

PARTING CW RE Ø34 PENTA 34N-J ±0.04 Inserts with 5 Cutting Edges for Parting and Grooving Soft Materials, Parting Tubes, Small and Thin-Walled Parts 4.3 Recommended Dimensions Machining Data f groove IC908 Designation CW RE CWTOL(1) RETOL(2) CDX(3) (mm/rev) PENTA 34N150J015 1.50 0.15 0.020 0.002 8.50 • 0.03-0.10 PENTA 34N200J020 2.00 0.20 0.020 0.002 8.50 • 0.04-0.12 PENTA 34N200J100 2.00 1.00 0.020 0.002 8.50 • 0.05-0.12 PENTA 34N239J015 2.39 0.15 0.020 0.002 8.50 • 0.04-0.16 PENTA 34N239J120 2.39 1.20 0.020 0.002 8.50 • 0.06-0.16 PENTA 34N250J020 2.50 0.20 0.020 0.002 8.50 • 0.04-0.16 PENTA 34N270J010 2.70 0.10 0.020 0.002 10.00 • 0.04-0.16 PENTA 34N300J000 3.00 0.00 0.020 0.000 10.00 • 0.04-0.10 PENTA 34N300J020 3.00 0.20 0.020 0.002 10.00 • 0.04-0.16 PENTA 34N300J040 3.00 0.40 0.020 0.002 10.00 • 0.04-0.16 PENTA 34N300J150 3.00 1.50 0.020 0.002 10.00 • 0.06-0.20 PENTA 34N318J020 3.18 0.20 0.020 0.002 10.00 • 0.20-0.16 • Recessing is possible only with 2.39 mm and wider inserts • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) For grooving and parting depths relative to part diameter, see page 60 For tools, see pages: PCADR/L (353) • PCADR/L 34N-RE (354) • PCADR/L-JHP (353) • PCHBR/L (355) • PCHPR/L (352) • PCHR/L-34 (351) • PCHR/L-34-JHP (351) • PCHR/L-34-JHP-MC (352) CW RE Ø34 PSIRL PSIRR ±0.04 PENTA 34R/L-J Inserts with 5 Cutting Edges for Parting Tubes, Small and Thin-Walled Parts 4.3 L R Dimensions Recommended Machining Data f groove IC908 Designation CW RE CWTOL(1) CUTDIA(2) PSIRL PSIRR (mm/rev) PENTA 34L150J06D 1.50 0.07 0.020 18.0 6.0 - • 0.03-0.09 PENTA 34L150J15D 1.50 0.07 0.020 18.0 15.0 - • 0.03-0.08 PENTA 34R150J06D 1.50 0.07 0.020 18.0 - 6.0 • 0.03-0.09 PENTA 34R150J15D 1.50 0.07 0.020 18.0 - 15.0 • 0.03-0.08 PENTA 34L200J06D 2.00 0.10 0.020 18.0 6.0 - • 0.04-0.10 PENTA 34L200J15D 2.00 0.10 0.020 18.0 15.0 - • 0.04-0.09 PENTA 34R200J06D 2.00 0.10 0.020 18.0 - 6.0 • 0.04-0.10 PENTA 34R200J15D 2.00 0.10 0.020 18.0 - 15.0 • 0.04-0.09 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) For grooving and parting depths relative to part diameter, see page 603 For tools, see pages: PCADR/L (353) • PCADR/L 34N-RE (354) • PCADR/L-JHP (353) • PCHBR/L (355) • PCHPR/L (352) • PCHR/L-34 (351) • PCHR/L-34-JHP (351) • PCHR/L-34-JHP-MC (352) 604 ISCAR
