Токарные инструменты Iscar (часть 1) 2026 - страница 545

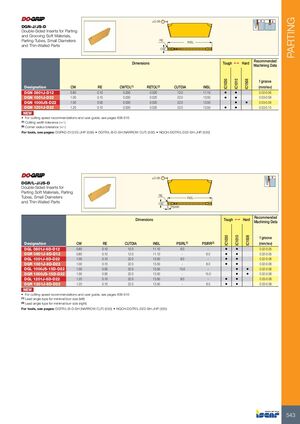

PARTING ±0.08 DGN-J/JS-D Double-Sided Inserts for Parting and Grooving Soft Materials, Parting Tubes, Small Diameters RE INSL and Thin-Walled Parts CW Recommended Dimensions Tough 1 Hard Machining Data f groove IC1030 IC1010 IC1508 Designation CW RE CWTOL(1) RETOL(2) CUTDIA INSL (mm/rev) DGN 0801J-D12 0.80 0.10 0.030 0.020 12.0 11.10 • • 0.02-0.06 DGN 1001J-D22 1.00 0.10 0.030 0.020 22.0 13.50 • • 0.03-0.08 DGN 1000JS-D22 1.00 0.00 0.030 0.020 22.0 13.50 • • 0.03-0.08 DGN 1201J-D22 1.20 0.10 0.030 0.020 22.0 13.50 • • 0.03-0.10 NEW • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: DGPAD-D12/22-JHP (539) • DGTR/L-B-D-SH (NARROW CUT) (530) • NQCH-DGTR/L-D22-SH-JHP (530) ±0.08 DGR/L-J/JS-D Double-Sided Inserts for Parting Soft Materials, Parting RE Tubes, Small Diameters INSL and Thin-Walled Parts CW PSIRR Recommended Dimensions Tough 1 Hard Machining Data f groove IC1030 IC1010 IC1508 Designation CW RE CUTDIA INSL PSIRL(1) PSIRR(2) (mm/rev) DGL 0801J-6D-D12 0.80 0.10 12.0 11.10 6.0 - • • 0.02-0.05 DGR 0801J-6D-D12 0.80 0.10 12.0 11.10 - 6.0 • • 0.02-0.05 DGL 1001J-8D-D22 1.00 0.10 22.0 13.50 8.0 - • • 0.02-0.06 DGR 1001J-8D-D22 1.00 0.10 22.0 13.50 - 8.0 • • 0.02-0.06 DGL 1000JS-15D-D22 1.00 0.00 22.0 13.50 15.0 - • • 0.02-0.06 DGR 1000JS-15D-D22 1.00 0.00 22.0 13.50 - 15.0 • • 0.02-0.06 DGL 1201J-8D-D22 1.20 0.10 22.0 13.50 8.0 - • • 0.03-0.08 DGR 1201J-8D-D22 1.20 0.10 22.0 13.50 - 8.0 • • 0.03-0.08 NEW • For cutting speed recommendations and user guide, see pages 606-615 (1) Lead angle type for minimal burr size (left) (2) Lead angle type for minimal burr size (right) For tools, see pages: DGTR/L-B-D-SH (NARROW CUT) (530) • NQCH-DGTR/L-D22-SH-JHP (530) 543
