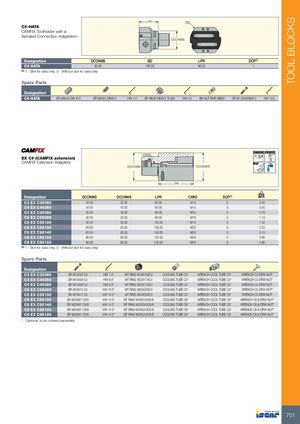

Токарные инструменты Iscar (часть 1) 2026 - страница 703

TOOL BLOCKS LPR BD C#-HATA CAMFIX Toolholder with a Serrated Connection Adaptation DCONMS Designation DCONMS BD LPR DCP(1) C6 HATA 63.00 106.00 66.00 1 (1) 1 - Slot for data chip, 0 - Without slot for data chip Spare Parts Designation C6 HATA SR M8X45 DIN 913 SR M8X25 DIN913 HW 4.0 SR M6X6 DIN913 TL360 HW 3.0 BH NUT BHR MB80 SR M12X35DIN912 HW 10.0 A 0.003 A 58-60 HRc CRKS EX C# (CAMFIX extension) CAMFIX Extension Adapters √N5 DCONMS DCONWS LPR kg Designation DCONMS DCONWS LPR CRKS DCP(1) C3 EX C3X080 32.00 32.00 80.00 M12 0 0.50 C4 EX C4X060 40.00 40.00 60.00 M14 0 0.50 C4 EX C4X080 40.00 40.00 80.00 M14 0 0.70 C5 EX C5X080 50.00 50.00 80.00 M16 0 1.13 C5 EX C5X100 50.00 50.00 100.00 M16 0 1.42 C6 EX C6X100 63.00 63.00 100.00 M20 0 2.23 C6 EX C6X140 63.00 63.00 140.00 M20 0 3.13 C8 EX C8X100 80.00 80.00 100.00 M20 0 3.65 C8 EX C8X125 80.00 80.00 125.00 M20 0 4.60 (1) 1 - Slot for data chip, 0 - Without slot for data chip Spare Parts Designation C3 EX C3X080 SR M12X50 C3 HW 7.0* MT RING M18X15XC3 COOLING TUBE C3* WRENCH COOL TUBE C3* WRENCH C3 DRW NUT* C4 EX C4X060 SR M14X58 C4 HW 8.0* MT RING M22X17XC4 COOLING TUBE C4* WRENCH COOL TUBE C4* WRENCH C4 DRW NUT* C4 EX C4X080 SR M14X58 C4 HW 8.0* MT RING M22X17XC4 COOLING TUBE C4* WRENCH COOL TUBE C4* WRENCH C4 DRW NUT* C5 EX C5X080 SR M16X70 C5 HW 10.0* MT RING M25X20XC5 COOLING TUBE C5* WRENCH COOL TUBE C5* WRENCH C5 DRW NUT* C5 EX C5X100 SR M16X70 C5 HW 10.0* MT RING M25X20XC5 COOLING TUBE C5* WRENCH COOL TUBE C5* WRENCH C5 DRW NUT* C6 EX C6X100 SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH C6-8 DRW NUT* C6 EX C6X140 SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH C6-8 DRW NUT* C8 EX C8X100 SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C6-8 DRW NUT* C8 EX C8X125 SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C6-8 DRW NUT* * Optional, to be ordered separately 701
