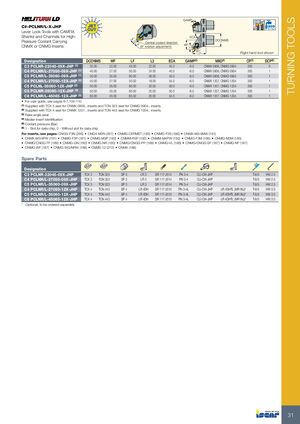

TURNING TOOLS GAMP 95º C#-PCLNR/L-X-JHP 95º Bar Max Lever Lock Tools with CAMFIX Shanks and Channels for High- ECA 4° DCONMS Pressure Coolant Carrying Central coolant direction 4° WF CNMX or CNMG Inserts (8° rotation adjustment) L3 95° LF Right hand tool shown Designation DCONMS WF LF L3 ECA GAMP(3) MIID(4) CP(5) DCP(6) C3 PCLNR-22045-09X-JHP (1) 32.00 22.00 45.00 22.00 45.0 -6.0 CNMX 0906, CNMG 0904 300 0 C4 PCLNR/L-27050-09X-JHP (1) 40.00 27.00 50.00 24.00 45.0 -6.0 CNMX 0906, CNMG 0904 300 1 C5 PCLNR/L-35060-09X-JHP (1) 50.00 35.00 60.00 26.00 45.0 -6.0 CNMX 0906, CNMG 0904 300 1 C4 PCLNR/L-27050-12X-JHP (2) 40.00 27.00 50.00 18.00 54.0 -6.0 CNMX 1207, CNMG 1204 300 1 C5 PCLNL-35060-12X-JHP (2) 50.00 35.00 60.00 30.00 50.0 -6.0 CNMX 1207, CNMG 1204 300 1 C5 PCLNR-35060-12X-JHP (2) 50.00 35.00 60.00 20.00 50.0 -6.0 CNMX 1207, CNMG 1204 300 1 C6 PCLNR/L-45065-12X-JHP (2) 63.00 45.00 65.00 20.00 54.0 -6.0 CNMX 1207, CNMG 1204 300 1 • For user guide, see pages 6-7,104-110 (1) Supplied with TCX 3 seat for CNMX 0906.. inserts and TCN 323 seat for CNMG 0904.. inserts. (2) Supplied with TCX 4 seat for CNMX 1207.. inserts and TCN 443 seat for CNMG 1204.. inserts. (3) Rake angle axial (4) Master insert identification (5) Coolant pressure (Bar) (6) 1 - Slot for data chip, 0 - Without slot for data chip For inserts, see pages: CNGG-F3N (266) • CNGX-M3N (267) • CNMG-CERMET (183) • CNMG-F3S (186) • CNMX-M3/4MW (191) • CNMX-M3/4PW (191) • CNMG-F3P (181) • CNMG-M3P (182) • CNMM-R3P (192) • CNMM-M4PW (192) • CNMG-F3M (185) • CNMG-M3M (185) • CNMG/CNGG-TF (189) • CNMG-GN (190) • CNMG-NR (190) • CNMG/CNGG-PP (189) • CNMG-VL (186) • CNMG/CNGG-SF (187) • CNMG-NF (187) • CNMG-WF (187) • CNMG-WG/NRW (188) • CNMS-12 (272) • CNMA (188) Spare Parts Designation C3 PCLNR-22045-09X-JHP TCX 3 TCN 323 SP 3 LR 3 SR 117-2014 PN 3-4 CU-CW-JHP T-8/5 HW 2.5 C4 PCLNR/L-27050-09X-JHP TCX 3 TCN 323 SP 3 LR 3 SR 117-2014 PN 3-4 CU-CW-JHP T-8/5 HW 2.5 C5 PCLNR/L-35060-09X-JHP TCX 3 TCN 323 SP 3 LR 3 SR 117-2014 PN 3-4 CU-CW-JHP T-8/5 HW 2.5 C4 PCLNR/L-27050-12X-JHP TCX 4 TCN 443 SP 4 LR 4DH SR 117-2010 PN 3-4L CU-CW-JHP LR 4DHTL (MR INJ)* T-8/5 HW 3.0 C5 PCLNR/L-35060-12X-JHP TCX 4 TCN 443 SP 4 LR 4DH SR 117-2010 PN 3-4L CU-CW-JHP LR 4DHTL (MR INJ)* T-8/5 HW 3.0 C6 PCLNR/L-45065-12X-JHP TCX 4 TCN 443 SP 4 LR 4DH SR 117-2010 PN 3-4L CU-CW-JHP LR 4DHTL (MR INJ)* T-8/5 HW 3.0 * Optional, to be ordered separately 31
