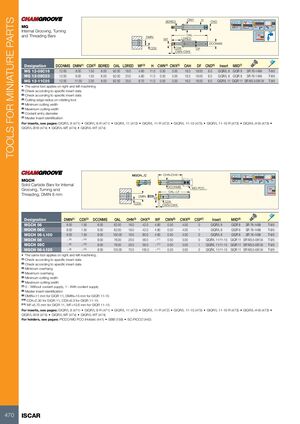

TOOLS FOR MINIATURE PARTS OAH H BDRED CND MG Internal Grooving, Turning and Threading Bars OAL DMIN LDRED WF DCONMS CDX CDX DF CWN-CWX Designation DCONMS DMIN(1) CDX(2) BDRED OAL LDRED WF(3) H CWN(4) CWX(5) OAH DF CND(6) Insert MIID(7) MG 12-08C16 12.00 8.00 1.50 6.00 92.00 16.0 4.80 11.0 0.50 3.00 16.3 18.00 6.0 GIQR/L 8 GIQR 8 SR 76-1499 T-8/5 MG 12-08C23 12.00 8.00 1.50 6.00 92.00 23.0 4.80 11.0 0.50 3.00 16.3 18.00 6.0 GIQR/L 8 GIQR 8 SR 76-1499 T-8/5 MG 12-11C25 12.00 11.00 2.30 8.00 92.50 25.0 6.70 11.0 0.50 3.00 16.3 18.00 6.0 GIQR/L 11 GIQR 11 SR M3.5-08134 T-9/5 • The same tool applies on right and left machining (1) Check according to specific insert data (2) Check according to specific insert data (3) Cutting edge radius on rotating tool (4) Minimum cutting width (5) Maximum cutting width (6) Coolant entry diameter (7) Master insert identification For inserts, see pages: GIQR/L 8 (471) • GIQR/L 8-R (471) • GIQR/L 11 (472) • GIQR/L 11-R (472) • GIQR/L 11-15 (473) • GIQR/L 11-15-R (473) • GIQR/L-A18 (473) • GIQR/L-B18 (474) • GIQR/L-MT (474) • GIQR/L-WT (474) MGCH...C OHN-OHX MGCH Solid Carbide Bars for Internal DCONMS MG PCO... Grooving, Turning and OAL=LF Threading, DMIN 8 mm DMIN WF CDX CDX CWN-CWX Designation DMIN(1) CDX(2) DCONMS OAL OHN(3) OHX(4) WF CWN(5) CWX(6) CSP(7) Insert MIID(8) MGCH 06 8.00 1.50 6.00 62.00 16.0 42.0 4.80 0.50 4.00 0 GIQR/L 8 GIQR 8 SR 76-1499 T-8/5 MGCH 06C 8.00 1.50 6.00 62.00 16.0 42.0 4.80 0.50 4.00 1 GIQR/L 8 GIQR 8 SR 76-1499 T-8/5 MGCH 06-L100 8.00 1.50 6.00 100.00 16.0 80.0 4.80 0.50 4.00 0 GIQR/L 8 GIQR 8 SR 76-1499 T-8/5 MGCH 08 - (9) - (10) 8.00 76.00 20.0 56.0 - (11) 0.50 5.00 0 GIQR/L 11/11-15 GIQR 11 SR M3.5-08134 T-9/5 MGCH 08C - (9) - (10) 8.00 76.00 20.0 56.0 - (11) 0.50 5.00 1 GIQR/L 11/11-15 GIQR 11 SR M3.5-08134 T-9/5 MGCH 08-L125 - (9) - (10) 8.00 125.00 70.0 105.0 - (11) 0.50 5.00 0 GIQR/L 11/11-15 GIQR 11 SR M3.5-08134 T-9/5 • The same tool applies on right and left machining . (1) Check according to specific insert data (2) Check according to specific insert data (3) Minimum overhang (4) Maximum overhang (5) Minimum cutting width (6) Maximum cutting width (7) 0 - Without coolant supply, 1 - With coolant supply (8) Master insert identification (9) DMIN=11 mm for GIQR 11, DMIN=15 mm for GIQR 11-15 (10) CDX=2.30 for GIQR 11, CDX=6.3 for GIQR 11-15 (11) WF=6.70 mm for GIQR 11, WF=10.6 mm for GIQR 11-15 For inserts, see pages: GIQR/L 8 (471) • GIQR/L 8-R (471) • GIQR/L 11 (472) • GIQR/L 11-R (472) • GIQR/L 11-15 (473) • GIQR/L 11-15-R (473) • GIQR/L-A18 (473) • GIQR/L-B18 (474) • GIQR/L-MT (474) • GIQR/L-WT (474) For holders, see pages: PICCO/MG PCO (Holder) (441) • SBB (158) • SC-PICCO (442) 470 ISCAR
