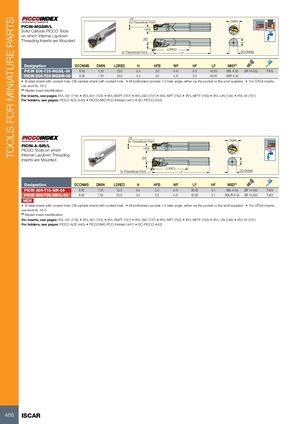

TOOLS FOR MINIATURE PARTS HF to Theoretical Point DMIN PICIN-MGSIR/L HFB Solid Carbide PICCO Tools on which Internal Laydown WF Threading Inserts are Mounted H LDRED to Theoretical Point LF DCONMS Designation DCONMS DMIN LDRED H HFB WF HF LF MIID(1) PICIN E06-T25-MGSIL-06 6.00 7.30 25.0 5.4 3.0 4.41 0.0 40.00 06IL A 55 SR 14-552 T-6/5 PICIN E06-T25-MGSIR-06 6.00 7.30 25.0 5.4 3.0 4.41 0.0 40.00 06IR A 55 • B-steel shank with coolant hole, CB-carbide shank with coolant hole • All toolholders provide 1.5 helix angle, either via the pocket or the anvil supplied • For GTGA inserts, use anvil AL 16-0 (1) Master insert identification For inserts, see pages: IR/L-55° (716) • IR/L-60° (723) • IR/L-BSPT (767) • IR/L-ISO (737) • IR/L-NPT (762) • IR/L-NPTF (765) • IR/L-UN (749) • IR/L-W (757) For holders, see pages: PICCO ACE (440) • PICCO/MG PCO (Holder) (441) • SC-PICCO (442) HF to Theoretical Point DMIN PICIN-A-SIR/L HFB PICCO Tools on which Internal Laydown Threading WF Inserts are Mounted H LDRED to Theoretical Point LF DCONMS Designation DCONMS DMIN LDRED H HFB WF LF HF MIID(1) PICIN A06-T15-SIR-06 6.00 7.30 15.0 5.4 3.0 4.41 30.00 0.1 06IL A 55 SR 14-552 T-6/5 PICIN A06-T25-SIR/L-06 6.00 7.30 25.0 5.4 3.0 4.41 40.00 0.1 06IL/R A 55 SR 14-552 T-6/5 NEW • B-steel shank with coolant hole, CB-carbide shank with coolant hole • All toolholders provide 1.5 helix angle, either via the pocket or the anvil supplied • For GTGA inserts, use anvil AL 16-0 (1) Master insert identification For inserts, see pages: IR/L-55° (716) • IR/L-60° (723) • IR/L-BSPT (767) • IR/L-ISO (737) • IR/L-NPT (762) • IR/L-NPTF (765) • IR/L-UN (749) • IR/L-W (757) For holders, see pages: PICCO ACE (440) • PICCO/MG PCO (Holder) (441) • SC-PICCO (442) 466 ISCAR
