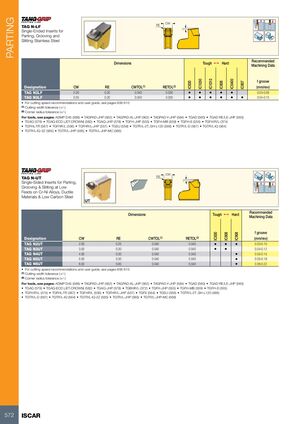

PARTING CW RE TAG N-LF 7° Single-Ended Inserts for Parting, Grooving and Slitting Stainless Steel Recommended Dimensions Tough 1 Hard Machining Data f groove IC1030 IC1010 IC5400 IC830 IC808 IC807 Designation CW RE CWTOL(1) RETOL(2) (mm/rev) TAG N2LF 2.00 0.20 0.040 0.030 • • • • • 0.03-0.08 TAG N3LF 3.05 0.20 0.040 0.030 • • • • • • 0.04-0.10 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: ADMP D45 (586) • TAGPAD-JHP (562) • TAGPAD-XL-JHP (562) • TAGPAD-Y-JHP (584) • TGAD (560) • TGAD RE/LE-JHP (560) • TGAQ (579) • TGAQ-ECD (JET-CROWN) (582) • TGAQ-JHP (578) • TGFH-JHP (555) • TGFH-MB (559) • TGFH-S (555) • TGFH/R/L (374) • TGFHL-TR (567) • TGFHR/L (556) • TGFHR/L-JHP (557) • TGSU (558) • TGTR/L-2T..SH-L120 (566) • TGTR/L-D (567) • TGTR/L-IQ (564) • TGTR/L-IQ-2Z (565) • TGTR/L-JHP (565) • TGTR/L-JHP-MC (566) CW RE TAG N-UT 7° Single-Sided Inserts for Parting, Grooving & Slitting at Low Feeds on Cr-Ni Alloys, Ductile Materials & Low Carbon Steel Recommended Dimensions Tough 1 Hard Machining Data f groove IC830 IC808 IC908 Designation CW RE CWTOL(1) RETOL(2) (mm/rev) TAG N2UT 2.00 0.20 0.040 0.040 • • • 0.03-0.10 TAG N3UT 3.00 0.30 0.040 0.040 • • 0.04-0.12 TAG N4UT 4.00 0.30 0.040 0.040 • 0.05-0.15 TAG N5UT 5.00 0.30 0.040 0.040 • 0.05-0.18 TAG N6UT 6.00 0.85 0.040 0.040 • 0.06-0.22 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: ADMP D45 (586) • TAGPAD-JHP (562) • TAGPAD-XL-JHP (562) • TAGPAD-Y-JHP (584) • TGAD (560) • TGAD RE/LE-JHP (560) • TGAQ (579) • TGAQ-ECD (JET-CROWN) (582) • TGAQ-JHP (578) • TGBHR/L (372) • TGFH-JHP (555) • TGFH-MB (559) • TGFH-S (555) • TGFH/R/L (374) • TGFHL-TR (567) • TGFHR/L (556) • TGFHR/L-JHP (557) • TGFS (564) • TGSU (558) • TGTR/L-2T..SH-L120 (566) • TGTR/L-D (567) • TGTR/L-IQ (564) • TGTR/L-IQ-2Z (565) • TGTR/L-JHP (565) • TGTR/L-JHP-MC (566) 572 ISCAR
