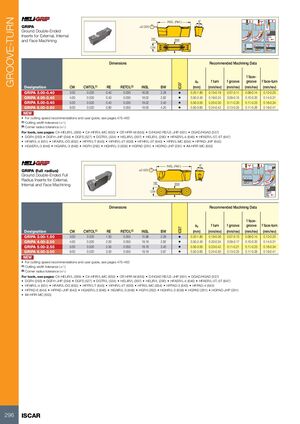

GROOVE-TURN INSL (Ref.) 6˚ GRIPA ±0.025 Ground Double-Ended Inserts for External, Internal RE BW and Face Machining CW Dimensions Recommended Machining Data f face- ap f turn f groove groove f face-turn IC07 Designation CW CWTOL(1) RE RETOL(2) INSL BW (mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev) GRIPA 3.00-0.40 3.00 0.020 0.40 0.030 16.00 2.28 • 0.25-1.80 0.15-0.19 0.07-0.11 0.08-0.14 0.12-0.20 GRIPA 4.00-0.40 4.00 0.020 0.40 0.030 19.02 2.82 • 0.50-2.40 0.18-0.24 0.09-0.15 0.10-0.20 0.14-0.31 GRIPA 5.00-0.40 5.00 0.020 0.40 0.030 19.02 3.40 • 0.50-3.00 0.20-0.30 0.11-0.20 0.11-0.23 0.16-0.34 GRIPA 6.00-0.80 6.00 0.020 0.80 0.050 19.00 4.20 • 0.50-3.60 0.24-0.42 0.13-0.25 0.11-0.26 0.19-0.41 NEW • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: C#-HELIR/L (289) • C#-HFIR/L-MC (653) • CR HFIR-M (655) • D/HGAD RE/LE-JHP (561) • DGAD/HGAD (537) • DGFH (293) • DGFH-JHP (294) • DGFS (527) • DGTR/L (534) • HELIIR/L (397) • HELIR/L (290) • HFAER/L-4 (646) • HFAER/L-5T, 6T (647) • HFAIR/L-4 (651) • HFAIR/L-DG (652) • HFFR/L-T (645) • HFHR/L-4T (639) • HFHR/L-5T (640) • HFIR/L-MC (654) • HFPAD-JHP (642) • HGAER/L-3 (646) • HGAIR/L-3 (648) • HGFH (292) • HGHR/L-3 (638) • HGPAD (291) • HGPAD-JHP (291) • IM-HFIR-MC (653) INSL (Ref.) 6˚ GRIPA (full radius) ±0.025 Ground Double-Ended Full Radius Inserts for External, RE BW Internal and Face Machining CW Dimensions Recommended Machining Data f face- ap f turn f groove groove f face-turn IC07 Designation CW CWTOL(1) RE RETOL(2) INSL BW (mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev) GRIPA 3.00-1.50 3.00 0.020 1.50 0.050 15.96 2.28 • 0.25-1.80 0.18-0.26 0.07-0.13 0.08-0.14 0.12-0.20 GRIPA 4.00-2.00 4.00 0.020 2.00 0.050 19.16 2.82 • 0.50-2.40 0.20-0.34 0.09-0.17 0.10-0.20 0.14-0.31 GRIPA 5.00-2.50 5.00 0.020 2.50 0.050 19.16 3.40 • 0.50-3.00 0.23-0.42 0.11-0.21 0.11-0.23 0.16-0.34 GRIPA 6.00-3.00 6.00 0.020 3.00 0.050 19.16 3.97 • 0.50-3.60 0.24-0.50 0.13-0.25 0.11-0.26 0.19-0.41 NEW • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: C#-HELIR/L (289) • C#-HFIR/L-MC (653) • CR HFIR-M (655) • D/HGAD RE/LE-JHP (561) • DGAD/HGAD (537) • DGFH (293) • DGFH-JHP (294) • DGFS (527) • DGTR/L (534) • HELIIR/L (397) • HELIR/L (290) • HFAER/L-4 (646) • HFAER/L-5T, 6T (647) • HFAIR/L-4 (651) • HFAIR/L-DG (652) • HFFR/L-T (645) • HFHR/L-4T (639) • HFIR/L-MC (654) • HFPAD-3 (643) • HFPAD-4 (643) • HFPAD-6 (644) • HFPAD-JHP (642) • HGAER/L-3 (646) • HGAIR/L-3 (648) • HGFH (292) • HGHR/L-3 (638) • HGPAD (291) • HGPAD-JHP (291) • IM-HFIR-MC (653) 296 ISCAR
