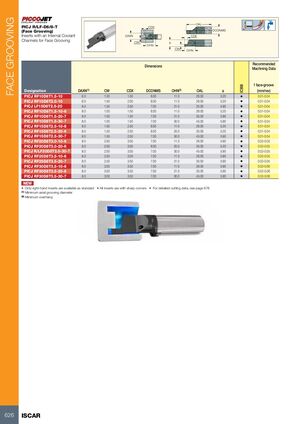

FACE GROOVING OAL PICJ R/LF-D6/8-T CDX (Face Grooving) DCONMS Inserts with an Internal Coolant DAXN CDX Channels for Face Grooving CW a OHN CW OHN Recommended Dimensions Machining Data f face-groove IC908 Designation DAXN(1) CW CDX DCONMS OHN(2) OAL a (mm/rev) PICJ RF10D6T1.5-10 6.0 1.00 1.50 6.00 11.0 26.00 5.20 • 0.01-0.04 PICJ RF15D6T2.0-10 6.0 1.50 2.00 6.00 11.0 26.00 5.20 • 0.01-0.04 PICJ LF15D8T2.5-20 8.0 1.50 2.50 7.00 21.0 35.00 5.90 • 0.01-0.04 PICJ RF10D8T1.5-10-6 8.0 1.00 1.50 6.00 11.0 26.00 5.20 • 0.01-0.04 PICJ RF10D8T1.5-20-7 8.0 1.00 1.50 7.00 21.0 35.00 5.90 • 0.01-0.04 PICJ RF10D8T1.5-30-7 8.0 1.00 1.50 7.00 30.0 45.00 5.90 • 0.01-0.04 PICJ RF15D8T2.5-10-6 8.0 1.50 2.50 6.00 11.0 26.00 5.20 • 0.01-0.04 PICJ RF15D8T2.5-20-6 8.0 1.50 2.50 6.00 20.0 35.00 5.20 • 0.01-0.04 PICJ RF15D8T2.5-30-7 8.0 1.50 2.50 7.00 30.0 45.00 5.90 • 0.01-0.04 PICJ RF20D8T3.0-10-6 8.0 2.00 3.00 7.00 11.0 26.00 5.90 • 0.02-0.05 PICJ RF20D8T3.0-20-6 8.0 2.00 3.00 6.00 20.0 35.00 5.20 • 0.02-0.05 PICJ R/LF20D8T3.0-30-7 8.0 2.00 3.00 7.00 30.0 45.00 5.90 • 0.02-0.05 PICJ RF25D8T3.5-10-6 8.0 2.50 3.50 7.00 11.0 26.00 5.90 • 0.02-0.05 PICJ RF25D8T3.5-20-7 8.0 2.50 3.50 7.00 21.0 35.00 5.90 • 0.02-0.05 PICJ RF30D8T3.5-10-6 8.0 3.00 3.50 7.00 11.0 26.00 5.90 • 0.02-0.06 PICJ RF30D8T3.5-20-6 8.0 3.00 3.50 7.00 21.0 35.00 5.90 • 0.02-0.06 PICJ RF30D8T3.5-30-7 8.0 3.00 3.50 7.00 30.0 45.00 5.90 • 0.02-0.06 NEW • Only right-hand inserts are available as standard • All inserts are with sharp corners • For detailed cutting data, see page 678 (1) Minimum axial grooving diameter (2) Minimum overhang 626 ISCAR
