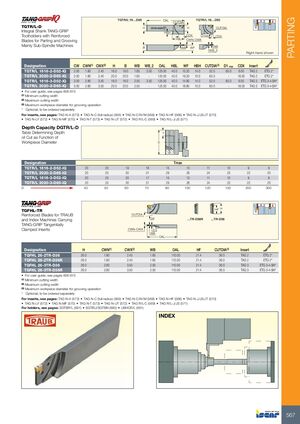

PARTING TGTR/L 19…D65 OAL TGTR/L 16…D52 CUTDIA TGTR/L-D H H CUTDIA Integral Shank TANG-GRIP HBH Toolholders with Reinforced CDX D1max CDX HBL CWN-CWX Blades for Parting and Grooving Mainly Sub-Spindle Machines B WB WB WF WB_2 Right-hand shown Designation CW CWN(1) CWX(2) H B WB WB_2 OAL HBL WF HBH CUTDIA(3) D1 max CDX Insert TGTR/L 1616-2-D52-IQ 2.00 1.80 2.40 16.0 16.0 1.65 3.50 125.00 40.0 15.20 14.0 52.0 65.0 6.00 TAG 2 ETG 2* TGTR/L 2020-2-D65-IQ 2.00 1.80 2.40 20.0 20.0 1.65 - 125.00 40.0 19.20 10.0 65.0 - 18.00 TAG 2 ETG 2* TGTR/L 1616-3-D52-IQ 3.00 2.80 3.50 16.0 16.0 2.50 3.50 125.00 40.0 14.80 14.0 52.0 65.0 6.00 TAG 3 ETG 3-4-SH* TGTR/L 2020-3-D65-IQ 3.00 2.80 3.50 20.0 20.0 2.50 - 125.00 40.0 18.80 10.0 65.0 - 18.00 TAG 3 ETG 3-4-SH* • For user guide, see pages 606-615 (1) Minimum cutting width (2) Maximum cutting width (3) Maximum workpiece diameter for grooving operation * Optional, to be ordered separately For inserts, see pages: TAG N-A (573) • TAG N-C (full radius) (569) • TAG N-C/W/M (568) • TAG N-HF (568) • TAG N-J/JS/JT (570) • TAG N-LF (572) • TAG N-MF (570) • TAG N-T (573) • TAG N-UT (572) • TAG R/L-C (569) • TAG R/L-J/JS (571) Depth Capacity DGTR/L-D Table Determining Depth T of Cut as Function of Workpiece Diameter D Designation Tmax TGTR/L 1616-2-D52-IQ 20 25 19 16 15 13 11 10 9 8 TGTR/L 2020-2-D65-IQ 20 25 30 31 29 26 24 23 22 20 TGTR/L 1616-3-D52-IQ 20 25 20 17 15 13 11 10 9 8 TGTR/L 2020-3-D65-IQ 20 25 30 31 29 26 24 23 22 20 D 40 50 60 70 80 100 120 150 200 300 HF H TGFHL-TR Reinforced Blades for TRAUB CUTDIA 54 and Index Machines Carrying ...TR-D36R ...TR-D36 TANG-GRIP Tangentially Clamped Inserts CWN-CWX 3.5 WB OAL Designation H CWN(1) CWX(2) WB OAL HF CUTDIA(3) Insert TGFHL 26-2TR-D36 26.0 1.80 2.40 1.65 110.00 21.4 36.0 TAG 2 ETG 2* TGFHL 26-2TR-D36R 26.0 1.80 2.40 1.65 110.00 21.4 36.0 TAG 2 ETG 2* TGFHL 26-3TR-D36 26.0 2.80 3.50 2.50 110.00 21.4 36.0 TAG 3 ETG 3-4-SH* TGFHL 26-3TR-D36R 26.0 2.80 3.50 2.50 110.00 21.4 36.0 TAG 3 ETG 3-4-SH* • For user guide, see pages 606-615 (1) Minimum cutting width (2) Maximum cutting width (3) Maximum workpiece diameter for grooving operation * Optional, to be ordered separately For inserts, see pages: TAG N-A (573) • TAG N-C (full radius) (569) • TAG N-C/W/M (568) • TAG N-HF (568) • TAG N-J/JS/JT (570) • TAG N-LF (572) • TAG N-MF (570) • TAG N-T (573) • TAG N-UT (572) • TAG R/L-C (569) • TAG R/L-J/JS (571) For holders, see pages: SGTBR/L (691) • SGTBU/SGTBN (690) • UBHCR/L (691) INDEX 567
