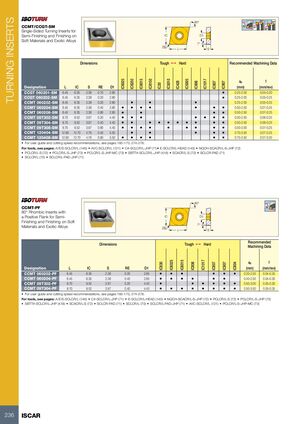

TURNING INSERTS 99° 80° 95º CCMT/CCGT-SM 95º 91° 95º Single-Sided Turning Inserts for Semi-Finishing and Finishing on IC D1 Soft Materials and Exotic Alloys 7° RE L S Dimensions Tough 1 Hard Recommended Machining Data ap f IC6025 IC8250 IC6015 IC8150 IC5010 IC5005 IC1017 IC428 IC806 IC807 IC907 IC20 Designation L IC S RE D1 (mm) (mm/rev) CCGT 060201-SM 6.45 6.35 2.38 0.10 2.80 • 0.25-2.00 0.05-0.20 CCGT 060202-SM 6.45 6.35 2.38 0.20 2.80 • 0.25-2.00 0.05-0.25 CCMT 060202-SM 6.45 6.35 2.38 0.20 2.80 • • • 0.25-2.00 0.05-0.25 CCMT 060204-SM 6.45 6.35 2.38 0.40 2.80 • • • • • • • 0.50-2.50 0.07-0.25 CCMT 060208-SM 6.45 6.35 2.38 0.80 2.80 • • • • 0.50-2.50 0.07-0.25 CCMT 09T302-SM 9.70 9.52 3.97 0.20 4.40 • • • • • • • 0.50-2.50 0.06-0.25 CCMT 09T304-SM 9.70 9.52 3.97 0.40 4.40 • • • • • • • • • • 0.50-2.50 0.06-0.25 CCMT 09T308-SM 9.70 9.52 3.97 0.80 4.40 • • • • • • • • • 0.50-3.00 0.07-0.25 CCMT 120404-SM 12.90 12.70 4.76 0.40 5.50 • • • • • 0.70-3.50 0.07-0.25 CCMT 120408-SM 12.90 12.70 4.76 0.80 5.50 • • • • • • 0.70-3.50 0.07-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278. For tools, see pages: A/E/S-SCLCR/L (146) • AVC-SCLCR/L (121) • C#-SCLCR/L-JHP (71)• E-SCLCR/L-HEAD (145) • NQCH-SCACR/L-S-JHP (72) • PCLCR/L-S (72) • PCLCR/L-S-JHP (73) • PCLCR/L-S-JHP-MC (73) • SBTT#-SCLCR/L-JHP (418) • SCACR/L-S (72) • SCLCR-PAD (71) • SCLCR/L (70) • SCLCR/L-PAD-JHP (71) 80° CCMT-PF 95º 80° Rhombic Inserts with a Positive Flank for Semi- IC D1 Finishing and Finishing on Soft 7° Materials and Exotic Alloys RE L S Recommended Dimensions Tough 1 Hard Machining Data ap f IC6025 IC6015 IC1017 IC830 IC806 IC807 IC907 IC804 Designation L IC S RE D1 (mm) (mm/rev) CCMT 060202-PF 6.45 6.35 2.38 0.20 2.85 • • • • • • 0.20-2.50 0.04-0.25 CCMT 060204-PF 6.45 6.35 2.38 0.40 2.85 • • • • • • 0.40-2.50 0.04-0.30 CCMT 09T302-PF 9.70 9.52 3.97 0.20 4.40 • • • • • • 0.50-3.00 0.05-0.30 CCMT 09T304-PF 9.70 9.52 3.97 0.40 4.40 • • • • • • • • 0.50-3.50 0.05-0.35 • For user guide and cutting speed recommendations, see pages 160-170, 274-278. For tools, see pages: A/E/S-SCLCR/L (146) • C#-SCLCR/L-JHP (71) • E-SCLCR/L-HEAD (145) • NQCH-SCACR/L-S-JHP (72) • PCLCR/L-S (72) • PCLCR/L-S-JHP (73) • SBTT#-SCLCR/L-JHP (418) • SCACR/L-S (72) • SCLCR-PAD (71) • SCLCR/L (70) • SCLCR/L-PAD-JHP (71) • AVC-SCLCR/L (121) • PCLCR/L-S-JHP-MC (73) 236 ISCAR
