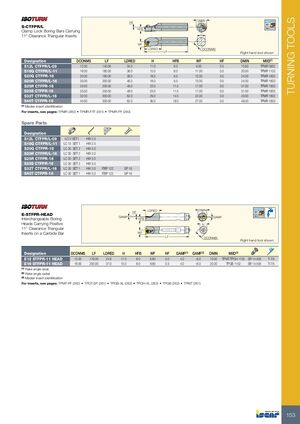

TURNING TOOLS DMIN HF 91º S-CTFPR/L HFB Clamp Lock Boring Bars Carrying 11° Clearance Triangular Inserts H WF LDRED DCONMS LF Right hand tool shown Designation DCONMS LF LDRED H HFB WF HF DMIN MIID(1) S12L CTFPR/L-09 12.00 140.00 34.0 11.0 6.0 9.00 0.5 15.60 TPMR 0902 S16Q CTFPR/L-11 16.00 180.00 38.0 15.0 8.0 11.00 0.5 20.00 TPMR 1103 S20Q CTFPR-16 20.00 180.00 38.0 18.0 9.5 13.00 0.5 24.00 TPMR 1603 S20R CTFPR/L-16 20.00 200.00 46.0 18.0 9.5 13.00 0.5 24.00 TPMR 1603 S25R CTFPR-16 25.00 200.00 48.0 23.0 11.5 17.00 0.0 31.00 TPMR 1603 S25S CTFPR-16 25.00 250.00 48.0 23.0 11.5 17.00 0.0 31.00 TPMR 1603 S32T CTFPR/L-16 32.00 300.00 62.0 29.0 14.5 22.00 0.0 40.00 TPMR 1603 S40T CTFPR-16 40.00 300.00 62.0 36.0 18.0 27.00 0.0 48.00 TPMR 1603 (1) Master insert identification For inserts, see pages: TPMR (260) • TPMR-FTF (261) • TPMR-PF (260) Spare Parts Designation S12L CTFPR/L-09 LC12 SET1 HW 2.5 S16Q CTFPR/L-11 LC 15 SET 1 HW 2.5 S20Q CTFPR-16 LC 30 SET 2 HW 3.0 S20R CTFPR/L-16 LC 30 SET 2 HW 3.0 S25R CTFPR-16 LC 30 SET 2 HW 3.0 S25S CTFPR-16 LC 30 SET 2 HW 3.0 S32T CTFPR/L-16 LC 30 SET 1 HW 3.0 ITBP 122 SP 16 S40T CTFPR-16 LC 30 SET 1 HW 3.0 ITBP 122 SP 16 LDRED DMIN HF 91º E-STFPR-HEAD GAMP GAMF Interchangeable Boring HFB Heads Carrying Positive H 11° Clearance Triangular Inserts on a Carbide Bar WF LF DCONMS Right hand tool shown Designation DCONMS LF LDRED H HFB WF HF GAMP(1) GAMF(2) DMIN MIID(3) E12 STFPR-11 HEAD 12.00 179.00 24.8 11.0 6.0 6.80 0.0 4.0 -6.0 13.00 TPMT/TPGH 1102 SR 14-505 T-7/5 E16 STFPR-11 HEAD 16.00 200.00 37.0 15.0 8.0 8.80 0.5 4.0 -6.0 20.00 TPGB 1102 SR 14-505 T-7/5 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: TPMT-PF (262) • TPGT-SP (261) • TPGB-XL (262) • TPGH-XL (263) • TPGB (262) • TPMT (261) 153
