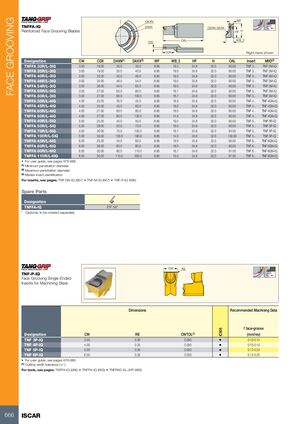

FACE GROOVING DAXN WF TNFFA-IQ DAXX DAXN-DAXX Reinforced Face Grooving Blades HF H OAL WB_2 CW CDX Right-hand shown Designation CW CDX DAXN(1) DAXX(2) WF WB_2 HF H OAL Insert MIID(3) TNFFA 30R/L-3IQ 3.00 19.00 30.0 35.0 8.85 19.0 24.8 32.0 90.00 TNF 3... TNF 3M-IQ TNFFA 35R/L-3IQ 3.00 19.00 35.0 40.0 8.85 19.0 24.8 32.0 90.00 TNF 3... TNF 3M-IQ TNFFA 40R/L-3IQ 3.00 23.00 40.0 46.0 8.85 19.0 24.8 32.0 90.00 TNF 3... TNF 3M-IQ TNFFA 46R/L-3IQ 3.00 25.00 46.0 54.0 8.85 19.0 24.8 32.0 90.00 TNF 3... TNF 3M-IQ TNFFA 54R/L-3IQ 3.00 26.00 54.0 65.0 8.85 19.0 24.8 32.0 90.00 TNF 3... TNF 3M-IQ TNFFA 65R/L-3IQ 3.00 27.00 65.0 80.0 8.85 16.7 24.8 32.0 90.00 TNF 3... TNF 3M-IQ TNFFA 80R/L-3IQ 3.00 27.00 80.0 100.0 8.85 16.7 24.8 32.0 90.00 TNF 3... TNF 3M-IQ TNFFA 35R/L-4IQ 4.00 25.00 35.0 45.0 8.85 18.0 24.8 32.0 90.00 TNF 4... TNF 4GN-IQ TNFFA 45R/L-4IQ 4.00 25.00 45.0 60.0 8.85 18.0 24.8 32.0 90.00 TNF 4... TNF 4GN-IQ TNFFA 60R/L-4IQ 4.00 27.00 60.0 80.0 8.85 18.0 24.8 32.0 90.00 TNF 4... TNF 4GN-IQ TNFFA 80R/L-4IQ 4.00 27.00 80.0 130.0 8.85 14.5 24.8 32.0 90.00 TNF 4... TNF 4GN-IQ TNFFA 40R/L-5IQ 5.00 25.00 40.0 50.0 8.85 19.0 24.8 32.0 90.00 TNF 5... TNF 5P-IQ TNFFA 50R/L-5IQ 5.00 28.00 50.0 70.0 8.85 18.0 24.8 32.0 90.00 TNF 5... TNF 5P-IQ TNFFA 70R/L-5IQ 5.00 30.00 70.0 100.0 8.85 16.7 24.8 32.0 94.00 TNF 5... TNF 5P-IQ TNFFA 100R/L-5IQ 5.00 35.00 100.0 180.0 8.85 14.0 24.8 32.0 100.00 TNF 5... TNF 5P-IQ TNFFA 45R/L-6IQ 6.00 25.00 45.0 60.0 8.85 19.0 24.8 32.0 90.00 TNF 6... TNF 6GN-IQ TNFFA 60R/L-6IQ 6.00 28.00 60.0 80.0 8.85 18.0 24.8 32.0 90.00 TNF 6... TNF 6GN-IQ TNFFA 80R/L-6IQ 6.00 30.00 80.0 110.0 8.85 16.7 24.8 32.0 91.00 TNF 6... TNF 6GN-IQ TNFFA 110R/L-6IQ 6.00 35.00 110.0 300.0 8.85 13.5 24.8 32.0 97.00 TNF 6... TNF 6GN-IQ • For user guide, see pages 676-688 (1) Minimum penetration diameter (2) Maximum penetration diameter (3) Master insert identification For inserts, see pages: TNF GN-IQ (667) • TNF-M-IQ (667) • TNF-P-IQ (666) Spare Parts Designation TNFFA-IQ ETF 3-6* * Optional, to be ordered separately CW RE TNF-P-IQ Face Grooving Single-Ended Inserts for Machining Steel Dimensions Recommended Machining Data f face-groove IC808 Designation CW RE CWTOL(1) (mm/rev) TNF 3P-IQ 3.00 0.30 0.050 • 0.10-0.15 TNF 4P-IQ 4.00 0.25 0.050 • 0.10-0.15 TNF 5P-IQ 5.00 0.35 0.050 • 0.12-0.20 TNF 6P-IQ 6.00 0.35 0.050 • 0.12-0.20 • For user guide, see pages 676-688 (1) Cutting width tolerance (+/-) For tools, see pages: TNFFA-IQ (666) • TNFFH-IQ (665) • TNFPAD-XL-JHP (668) 666 ISCAR
