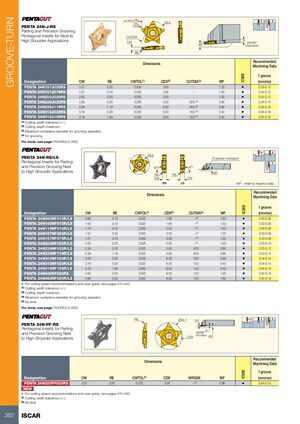

Токарные инструменты Iscar (часть 1) 2026 - страница 364

GROOVE-TURN ±0.025 24.2 CDX PENTA 24N-J-RS Parting and Precision Grooving Pentagonal Inserts for Next to CUTDIA High Shoulder Applications CW 3° pocket WF inclination RE Recommended Dimensions Machining Data f groove IC908 Designation CW RE CWTOL(1) CDX(2) CUTDIA(3) WF (mm/rev) PENTA 24N157J020RS 1.57 0.20 0.200 3.00 - 1.20 • 0.03-0.10 PENTA 24N157J079RS 1.57 0.79 0.200 3.00 - 1.20 • 0.04-0.12 PENTA 24N200J020RS 2.00 0.20 0.200 3.00 - 1.00 • 0.04-0.12 PENTA 24N239J020RS 2.39 0.20 0.200 5.00 30.0 (4) 0.80 • 0.04-0.14 PENTA 24N239J119RS 2.39 1.19 0.200 5.00 30.0 (4) 0.80 • 0.04-0.16 PENTA 24N318J020RS 3.18 0.20 0.200 6.20 16.0 (4) 0.40 • 0.04-0.16 PENTA 24N318J159RS 3.18 1.59 0.200 6.20 16.0 (4) 0.40 • 0.04-0.16 (1) Cutting width tolerance (+/-) (2) Cutting depth maximum (3) Maximum workpiece diameter for grooving operation (4) for grooving For tools, see page: PCHRS/LS (350) D24 PENTA 24N-RS/LS 3º pocket inclination Pentagonal Inserts for Parting and Precision Grooving Next 87º 87º to High Shoulder Applications WF RE RE CW CW RS LS WF - refer to inserts data Recommended Dimensions Machining Data f groove IC908 Designation CW RE CWTOL(1) CDX(2) CUTDIA(3) WF (mm/rev) PENTA 24N080NF010R/LS 0.80 0.10 0.020 1.60 - (4) 1.60 • 0.03-0.05 PENTA 24N100NF010R/LS 1.00 0.10 0.020 1.80 - (4) 1.50 • 0.03-0.06 PENTA 24N119NF010R/LS 1.19 0.10 0.020 2.00 - (4) 1.40 • 0.03-0.06 PENTA 24N157NF020R/LS 1.57 0.20 0.020 3.00 - (4) 1.20 • 0.03-0.08 PENTA 24N157NF079R/LS 1.57 0.79 0.020 3.00 - (4) 1.20 • 0.03-0.08 PENTA 24N200NF020R/LS 2.00 0.20 0.020 3.00 - (4) 1.00 • 0.03-0.10 PENTA 24N239NF020R/LS 2.39 0.20 0.020 5.00 40.0 0.80 • 0.03-0.12 PENTA 24N239NF119R/LS 2.39 1.19 0.020 5.00 40.0 0.80 • 0.03-0.12 PENTA 24N300NF020R/LS 3.00 0.20 0.020 6.20 16.0 0.50 • 0.04-0.14 PENTA 24N318NF020R/LS 3.18 0.20 0.020 6.50 13.0 0.40 • 0.04-0.14 PENTA 24N318NF159R/LS 3.18 1.59 0.020 6.50 13.0 0.40 • 0.04-0.14 PENTA 24N400NF020RS 4.00 0.20 0.020 6.50 13.0 1.00 • 0.04-0.16 PENTA 24N480NF020R/LS 4.80 0.20 0.020 6.50 13.0 1.60 • 0.04-0.16 • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Cutting depth maximum (3) Maximum workpiece diameter for grooving operation (4) No limit For tools, see page: PCHRS/LS (350) RE Ø24.1 CW PENTA 24N-PF-RS Pentagonal Inserts for Parting 3º and Precision Grooving Next pocket inclination WF CDX to High Shoulder Applications Recommended Dimensions Machining Data f groove IC908 Designation CW RE CWTOL(1) CDX WPGDX WF (mm/rev) PENTA 24N200PF020RS 2.00 0.20 0.020 3.00 - (2) 0.96 • 0.04-0.10 NEW • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) No limit 362 ISCAR
