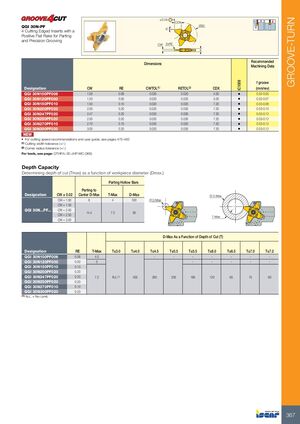

GROOVE-TURN ±0.04 CDX QGI 30N-PF Ø30 6˚ 4 Cutting Edged Inserts with a Positive Flat Rake for Parting and Precision Grooving CW 2xRE 4 Recommended Dimensions Machining Data f groove IC1008 Designation CW RE CWTOL(1) RETOL(2) CDX (mm/rev) QGI 30N100PF006 1.00 0.06 0.020 0.020 4.00 • 0.02-0.05 QGI 30N120PF000 1.20 0.00 0.020 0.020 5.00 • 0.02-0.07 QGI 30N150PF010 1.50 0.10 0.020 0.020 7.20 • 0.03-0.08 QGI 30N200PF020 2.00 0.20 0.020 0.030 7.20 • 0.03-0.10 QGI 30N247PF020 2.47 0.20 0.020 0.030 7.20 • 0.03-0.12 QGI 30N250PF020 2.50 0.20 0.020 0.030 7.20 • 0.03-0.12 QGI 30N270PF010 2.70 0.10 0.020 0.020 7.20 • 0.03-0.12 QGI 30N300PF020 3.00 0.20 0.020 0.030 7.20 • 0.03-0.12 NEW • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see page: QTHR/L-30-JHP-MC (366) Depth Capacity Determining depth of cut (Tmax) as a function of workpiece diameter (Dmax.) Parting Hollow Bars Parting to Designation CW ± 0.02 Center D-Max T-Max D-Max Ø D-Max CW = 1�00 8 4 300 Ø D-Max CW = 1�50 QGI 30N...PF... CW = 2�00 14�4 7�2 60 CW = 2�50 T-Max CW = 3�00 D-Max As a Function of Depth of Cut (T) Designation RE T-Max T≤3.0 T≤4.0 T≤4.5 T≤0.5 T≤5.5 T≤6.0 T≤6.5 T≤7.0 T≤7.2 QGI 30N100PF006 0�06 4�0 - - - - - - - QGI 30N120PF000 0�00 5 - - - - - QGI 30N150PF010 0�10 QGI 30N200PF020 0�20 QGI 30N247PF020 0�20 7�2 N�L�(1) 300 260 200 160 120 95 75 60 QGI 30N250PF020 0�20 QGI 30N270PF010 0�10 QGI 30N300PF020 0�20 (1) N�L� = No Limit� 367
