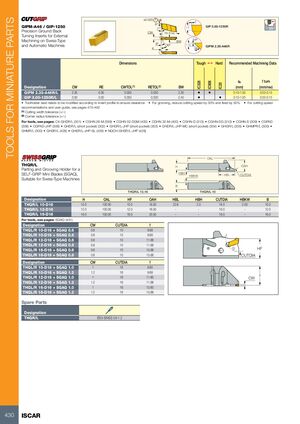

TOOLS FOR MINIATURE PARTS ±0.025 2° 6° GIPM-A46 / GIP-1250 7° 1.2 GIP 3.00-1250R Precision Ground Back CW 15.3 Ref. Turning Inserts for External 0.25 Machining on Swiss-Type BW 8° and Automatic Machines 30° 1.15 GIPM 2.35-A46R 4 46° Dimensions Tough 1 Hard Recommended Machining Data ap f turn IC328 IC908 IC20 Designation CW RE CWTOL(1) RETOL(2) BW (mm) (mm/rev) GIPM 2.35-A46R/L 2.35 0.05 0.050 0.030 2.20 • • 0.10-1.00 0.02-0.15 GIP 3.00-1250R/L 3.00 0.00 0.050 0.030 2.40 • • 0.10-1.00 0.02-0.15 • Toolholder seat needs to be modified according to insert profile to ensure clearance • For grooving, reduce cutting speed by 30% and feed by 50% • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: C#-GHDR/L (301) • CGHN 26-M (399) • CGHN 32-DGM (400) • CGHN 32-M (400) • CGHN-D (310) • CGHN-DG (310) • CGHN-S (309) • CGPAD (308) • CGPAD-JHP (309) • GHDR/L (short pocket) (302) • GHDR/L-JHP (short pocket) (303) • GHDR/L-JHP-MC (short pocket) (304) • GHGR/L (305) • GHMPR/L (300) • GHMR/L (300) • GHSR/L (428) • GHSR/L-JHP-SL (429) • NQCH-GHSR/L-JHP (428) OAL THQR/L H OAH Parting and Grooving Holder for a SELF-GRIP Mini Blades (SGAQ), HBH HBKW HBL CUTDIA Suitable for Swiss-Type Machines B THQR/L 12,16 THQR/L 10 Designation H OAL HF OAH HBL HBH CUTDIA HBKW B THQR/L 10-D16 10.0 100.00 10.0 16.50 22.6 2.0 16.0 2.00 10.0 THQR/L 12-D16 12.0 100.00 12.0 16.50 - - 16.0 - 12.0 THQR/L 16-D16 16.0 100.00 16.0 20.50 - - 16.0 - 16.0 For tools, see pages: SGAQ (431) Designation CW CUTDIA f THQL/R 10-D16 + SGAQ 0.6 0�6 10 9�68 THQL/R 10-D16 + SGAQ 0.8 0�8 10 9�68 THQL/R 12-D16 + SGAQ 0.6 0�6 10 11�68 THQL/R 12-D16 + SGAQ 0.8 0�8 10 11�68 THQL/R 16-D16 + SGAQ 0.6 0�6 10 15�68 HF THQL/R 16-D16 + SGAQ 0.8 0�8 10 15�68 CUTDIA Designation CW CUTDIA f THQL/R 10-D16 + SGAQ 1.0 1 16 9�60 THQL/R 10-D16 + SGAQ 1.2 1�2 16 9�68 THQL/R 12-D16 + SGAQ 1.0 1 16 11�60 f CW THQL/R 12-D16 + SGAQ 1.2 1�2 16 11�68 THQL/R 16-D16 + SGAQ 1.0 1 16 15�60 THQL/R 16-D16 + SGAQ 1.2 1�2 16 15�68 Spare Parts Designation THQR/L ESG-SWISS 0.6-1.2 430 ISCAR
