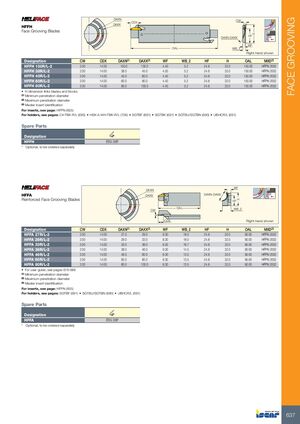

Токарные инструменты Iscar (часть 1) 2026 - страница 639

FACE GROOVING DAXN CW CDX DAXX HFFH Face Grooving Blades H HF DAXN-DAXX WF OAL WB_2 Right-hand shown Designation CW CDX DAXN(1) DAXX(2) WF WB_2 HF H OAL MIID(3) HFFH 100R/L-2 2.00 14.00 100.0 130.0 4.40 5.2 24.8 32.0 150.00 HFPN 2002 HFFH 38R/L-2 2.00 14.00 38.0 45.0 4.50 5.2 24.8 32.0 150.00 HFPN 2002 HFFH 45R/L-2 2.00 14.00 45.0 60.0 4.40 5.2 24.8 32.0 150.00 HFPN 2002 HFFH 60R/L-2 2.00 14.00 60.0 80.0 4.40 5.2 24.8 32.0 150.00 HFPN 2002 HFFH 80R/L-2 2.00 14.00 80.0 100.0 4.40 5.2 24.8 32.0 150.00 HFPN 2002 • H dimension links blades and blocks (1) Minimum penetration diameter (2) Maximum penetration diameter (3) Master insert identification For inserts, see page: HFPN (655) For holders, see pages: C#-TBK-R/L (695) • HSK A-WH-TBK-R/L (706) • SGTBF (691) • SGTBK (691) • SGTBU/SGTBN (690) • UBHCR/L (691) Spare Parts Designation HFFH EDG 33B* * Optional, to be ordered separately WF DAXN HFFA DAXX DAXN-DAXX Reinforced Face Grooving Blades HF H OAL WB_2 CW CDX Right-hand shown Designation CW CDX DAXN(1) DAXX(2) WF WB_2 HF H OAL MIID(3) HFFA 27R/L-2 2.00 14.00 27.0 29.0 9.30 19.0 24.8 32.0 90.00 HFPN 2002 HFFA 29R/L-2 2.00 14.00 29.0 33.0 9.30 18.0 24.8 32.0 90.00 HFPN 2002 HFFA 33R/L-2 2.00 14.00 33.0 38.0 9.30 16.7 24.8 32.0 90.00 HFPN 2002 HFFA 38R/L-2 2.00 14.00 38.0 46.0 9.30 14.5 24.8 32.0 90.00 HFPN 2002 HFFA 46R/L-2 2.00 14.00 46.0 60.0 9.30 13.5 24.8 32.0 90.00 HFPN 2002 HFFA 60R/L-2 2.00 14.00 60.0 80.0 9.30 13.5 24.8 32.0 90.00 HFPN 2002 HFFA 80R/L-2 2.00 14.00 80.0 105.0 9.30 13.5 24.8 32.0 90.00 HFPN 2002 • For user guide, see pages 676-688 (1) Minimum penetration diameter (2) Maximum penetration diameter (3) Master insert identification For inserts, see page: HFPN (655) For holders, see pages: SGTBF (691) • SGTBU/SGTBN (690) • UBHCR/L (691) Spare Parts Designation HFFA EDG 33B* * Optional, to be ordered separately 637
