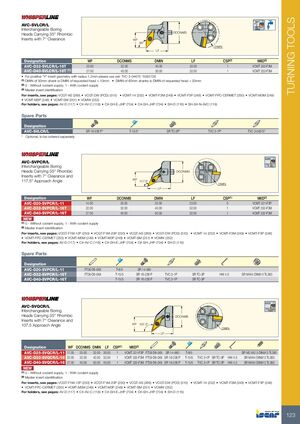

TURNING TOOLS 95º AVC-SVLCR/L 48° Interchangeable Boring MAX DCONMS Heads Carrying 35° Rhombic Inserts with 7° Clearance WF 95° DMIN LF Designation WF DCONMS DMIN LF CSP(2) MIID(3) AVC-D32-SVLCR/L-16T 22.00 32.00 40.00 32.00 1 VCMT 332-F3M AVC-D40-SVLCR/L-16T (1) 27.00 40.00 50.00 32.00 1 VCMT 332-F3M • For positive “V” insert geometry with radius 1.2mm please use set: TVC 3-04675 *5592726 (1) DMIN of 50mm shank is DMIN of requested head + 10mm • DMIN of 60mm shanks is DMIN of requested head + 20mm (2) 0 - Without coolant supply, 1 - With coolant supply (3) Master insert identification For inserts, see pages: VCGT-AS (269) • VCGT-DW (PCD) (515) • VCMT-14 (252) • VCMT-F3M (249) • VCMT-F3P (248) • VCMT-FPC-CERMET (250) • VCMT-M3M (249) • VCMT-M3P (248) • VCMT-SM (251) • VCMW (252) For holders, see pages: AV-D (117) • C#-AV-C (118) • C#-SH-E-JHP (704) • C#-SH-JHP (704) • SH-D (116) • SH-S#-N-AVC (119) Spare Parts Designation AVC-SVLCR/L SR 16-236 P* T-15/5* SR TC-3P* TVC 3-1P* TVC 3-04675* * Optional, to be ordered separately 107.5º AVC-SVPCR/L Interchangeable Boring 35º MAX Heads Carrying 35° Rhombic DCONMS Inserts with 7° Clearance and WF 117.5° Approach Angle 117.5˚ DMIN LF Designation WF DCONMS DMIN LF CSP(1) MIID(2) AVC-D20-SVPCR/L-11 14.00 20.00 25.00 23.00 0 VCMT 221-F3P AVC-D32-SVPCR/L-16T 22.00 32.00 40.00 32.00 1 VCMT 332-F3M AVC-D40-SVPCR/L-16T 27.00 40.00 50.00 32.00 1 VCMT 332-F3M NEW (1) 0 - Without coolant supply, 1 - With coolant supply (2) Master insert identification For inserts, see pages: VCGT-F1M-12P (250) • VCGT-F1M-20P (250) • VCGT-AS (269) • VCGT-DW (PCD) (515) • VCMT-14 (252) • VCMT-F3M (249) • VCMT-F3P (248) • VCMT-FPC-CERMET (250) • VCMT-M3M (249) • VCMT-M3P (248) • VCMT-SM (251) • VCMW (252) For holders, see pages: AV-D (117) • C#-AV-C (118) • C#-SH-E-JHP (704) • C#-SH-JHP (704) • SH-D (116) Spare Parts Designation AVC-D20-SVPCR/L-11 FT39 D6-5X8 T-8/5 SR 14-560 AVC-D32-SVPCR/L-16T FT39 D6-5X8 T-15/5 SR 16-236 P TVC 3-1P SR TC-3P HW 4.0 SR M4X4 DIN913 TL360 AVC-D40-SVPCR/L-16T T-15/5 SR 16-236 P TVC 3-1P SR TC-3P 117.5º AVC-SVQCR/L Interchangeable Boring 25º&35º MAX Heads Carrying 35° Rhombic DCONMS Inserts with 7° Clearance and 107.5 Approach Angle WF 107.5˚ DMIN LF Designation WF DCONMS DMIN LF CSP(1) MIID(2) AVC-D25-SVQCR/L-11 17.00 25.00 32.00 30.00 1 VCMT 221-F3P FT39 D6-5X8 SR 14-560 T-8/5 SR M2.5X2.5 DIN913 TL360 AVC-D32-SVQCR/L-16 22.00 32.00 40.00 32.00 1 VCMT 332-F3M FT39 D6-5X8 SR 16-236 P T-15/5 TVC 3-1P SR TC-3P HW 4.0 SR M4X4 DIN913 TL360 AVC-D40-SVQCR/L-16 27.00 40.00 50.00 40.00 1 VCMT 332-F3M FT39 D6-5X8 SR 16-236 P T-15/5 TVC 3-1P SR TC-3P HW 4.0 SR M4X4 DIN913 TL360 NEW (1) 0 - Without coolant supply, 1 - With coolant supply (2) Master insert identification For inserts, see pages: VCGT-F1M-12P (250) • VCGT-F1M-20P (250) • VCGT-AS (269) • VCGT-DW (PCD) (515) • VCMT-14 (252) • VCMT-F3M (249) • VCMT-F3P (248) • VCMT-FPC-CERMET (250) • VCMT-M3M (249) • VCMT-M3P (248) • VCMT-SM (251) • VCMW (252) For holders, see pages: AV-D (117) • C#-AV-C (118) • C#-SH-E-JHP (704) • C#-SH-JHP (704) • SH-D (116) 123
