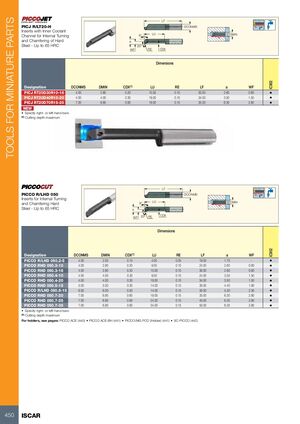

TOOLS FOR MINIATURE PARTS LF PICJ R/LT20-H DCONMS Inserts with Inner Coolant LU DMIN Channel for Internal Turning 8° and Chamfering of Hard a Steel - Up to 65 HRC 20° WF RE CDX Dimensions IC902 Designation DCONMS DMIN CDX(1) LU RE LF a WF PICJ RT20D30R10-16 4.00 2.80 0.20 15.00 0.10 30.00 2.60 0.60 • PICJ RT20D40R10-20 4.00 4.00 0.30 19.00 0.10 34.00 3.50 1.50 • PICJ RT20D70R15-20 7.00 6.80 0.60 19.00 0.15 35.00 6.30 2.80 • NEW • Specify right- or left-hand bars (1) Cutting depth maximum LF PICCO R/LHD 050 DCONMS Inserts for Internal Turning LU DMIN and Chamfering Hard 8° Steel - Up to 65 HRC a 20° RE CDX WF Dimensions IC902 Designation DCONMS DMIN CDX(1) LU RE LF a WF PICCO R/LHD 050.2-5 4.00 2.00 0.10 4.00 0.05 19.00 1.70 - • PICCO RHD 050.3-10 4.00 2.80 0.20 9.00 0.10 24.00 2.60 0.60 • PICCO RHD 050.3-16 4.00 2.80 0.20 15.00 0.10 30.00 2.60 0.60 • PICCO RHD 050.4-10 4.00 4.00 0.30 9.00 0.10 24.00 3.50 1.50 • PICCO RHD 050.4-20 4.00 4.00 0.30 19.00 0.10 34.00 3.50 1.50 • PICCO RHD 050.5-15 5.00 5.00 0.50 14.00 0.15 30.00 4.40 1.90 • PICCO R/LHD 050.6-15 6.00 6.00 0.50 14.00 0.15 30.00 5.30 2.30 • PICCO RHD 050.7-20 7.00 6.80 0.60 19.00 0.15 35.00 6.30 2.80 • PICCO RHD 050.7-25 7.00 6.80 0.60 24.00 0.15 40.00 6.30 2.80 • PICCO RHD 050.7-35 7.00 6.80 0.60 34.00 0.15 50.00 6.30 2.80 • • Specify right- or left-hand bars (1) Cutting depth maximum For holders, see pages: PICCO ACE (440) • PICCO ACE-BH (441) • PICCO/MG PCO (Holder) (441) • SC-PICCO (442) 450 ISCAR
