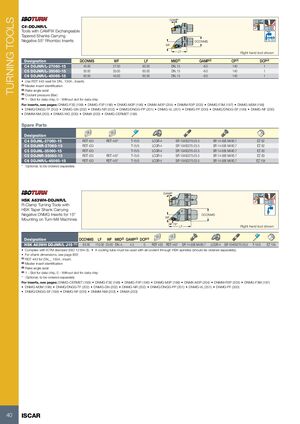

TURNING TOOLS GAMP 27° MAX 15° C#-DDJNR/L 93° Tools with CAMFIX Exchangeable Tapered Shanks Carrying Negative 55° Rhombic Inserts DCONMS Bar Max WF LF Right hand tool shown Designation DCONMS WF LF MIID(1) GAMP(2) CP(3) DCP(4) C4 DDJNR/L-27060-15 40.00 27.00 60.00 DN..15 -6.0 140 1 C5 DDJNR/L-35060-15 50.00 35.00 60.00 DN..15 -6.0 140 1 C6 DDJNR/L-45065-15 63.00 45.00 65.00 DN..15 -6.0 140 1 • Use RDT 443 seat for DN.. 1504.. inserts (1) Master insert identification (2) Rake angle axial (3) Coolant pressure (Bar) (4) 1 - Slot for data chip, 0 - Without slot for data chip For inserts, see pages: DNMG-F3S (198) • DNMG-F3P (196) • DNMG-M3P (196) • DNMX-M3P (204) • DNMM-R3P (203) • DNMG-F3M (197) • DNMG-M3M (198) • DNMG/DNGG-TF (202) • DNMG-GN (202) • DNMG-NR (202) • DNMG/DNGG-PP (201) • DNMG-VL (201) • DNMG-PF (200) • DNMG/DNGG-SF (199) • DNMG-NF (200) • DNMM-NM (203) • DNMG-WG (200) • DNMA (203) • DNMG-CERMET (199) Spare Parts Designation C4 DDJNL-27060-15 RDT 433 RDT 443* T-15/5 LCGR-4 SR 10400270-25.5 SR 14-506 M4X0.7 EZ 62 C4 DDJNR-27060-15 RDT 433 T-15/5 LCGR-4 SR 10400270-25.5 SR 14-506 M4X0.7 EZ 62 C5 DDJNL-35060-15 RDT 433 T-15/5 LCGR-4 SR 10400270-25.5 SR 14-506 M4X0.7 EZ 83 C5 DDJNR-35060-15 RDT 433 RDT 443* T-15/5 LCGR-4 SR 10400270-25.5 SR 14-506 M4X0.7 EZ 83 C6 DDJNR/L-45065-15 RDT 433 RDT 443* T-15/5 LCGR-4 SR 10400270-25.5 SR 14-506 M4X0.7 EZ 104 * Optional, to be ordered separately GAMP 27° MAX 15° HSK A63WH-DDJNR/L 93° R-Clamp Turning Tools with HSK Taper Shank Carrying Negative DNMG Inserts for 15° DCONMS WF Mounting on Turn-Mill Machines 78° LF Right hand tool shown Designation DCONMS LF WF MIID(2) GAMP(3) DCP(4) HSK A63WH DDJNR/L J15 (1) 63.00 110.00 25.00 DN..4.. 4.5 0 RDT 433 RDT 443* SR 14-506 M4X0.7 LCGR-4 SR 10400270-25.5 T-15/5 EZ 104 • Complies with ICTM standard (ISO 12164-3). • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). • For shank dimensions, see page 835 (1) RDT 443 for DN__ 1504.. insert. (2) Master insert identification (3) Rake angle axial (4) 1 - Slot for data chip, 0 - Without slot for data chip * Optional, to be ordered separately For inserts, see pages: DNMG-CERMET (199) • DNMG-F3S (198) • DNMG-F3P (196) • DNMG-M3P (196) • DNMX-M3P (204) • DNMM-R3P (203) • DNMG-F3M (197) • DNMG-M3M (198) • DNMG/DNGG-TF (202) • DNMG-GN (202) • DNMG-NR (202) • DNMG/DNGG-PP (201) • DNMG-VL (201) • DNMG-PF (200) • DNMG/DNGG-SF (199) • DNMG-NF (200) • DNMM-NM (203) • DNMA (203) 40 ISCAR
