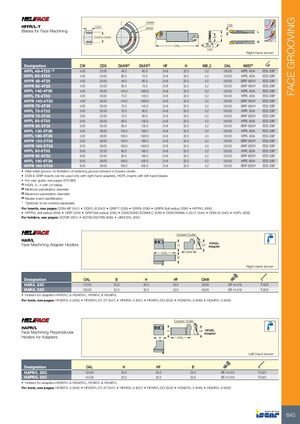

FACE GROOVING DAXN CW HFFR/L-T CDX DAXX Blades for Face Machining L DAXN-DAXX HF H R OAL WB_2 150° Right-hand shown Designation CW CDX DAXN(2) DAXX(3) HF H WB_2 OAL MIID(4) HFFL 48-4T25 (1) 4.00 25.00 48.0 60.0 24.8 32.0 5.2 150.00 HFPL 4004 EDG 33B* HFFL 60-4T25 4.00 25.00 60.0 75.0 24.8 32.0 5.2 150.00 HFPL 4004 EDG 33B* HFFR 48-4T25 4.00 25.00 48.0 60.0 24.8 32.0 5.2 150.00 GRIP 4004Y EDG 33B* HFFR 60-4T25 4.00 25.00 60.0 75.0 24.8 32.0 5.2 150.00 GRIP 4004Y EDG 33B* HFFL 140-4T30 4.00 30.00 140.0 1500.0 24.8 32.0 3.2 150.00 HFPL 4004 EDG 33B* HFFL 75-4T30 4.00 30.00 75.0 140.0 24.8 32.0 5.2 150.00 HFPL 4004 EDG 33B* HFFR 140-4T30 4.00 30.00 140.0 1500.0 24.8 32.0 3.2 150.00 GRIP 4004Y EDG 33B* HFFR 75-4T30 4.00 30.00 75.0 140.0 24.8 32.0 5.2 150.00 GRIP 4004Y EDG 33B* HFFL 70-5T32 5.00 32.00 70.0 95.0 24.8 32.0 5.2 150.00 HFPL 5004 EDG 33B* HFFR 70-5T32 5.00 32.00 70.0 95.0 24.8 32.0 5.2 150.00 GRIP 5005Y EDG 33B* HFFL 95-5T35 5.00 35.00 95.0 130.0 24.8 32.0 5.2 150.00 HFPL 5004 EDG 33B* HFFR 95-5T35 5.00 35.00 95.0 130.0 24.8 32.0 5.2 150.00 GRIP 5005Y EDG 33B* HFFL 130-5T38 5.00 38.00 130.0 180.0 24.8 32.0 5.2 150.00 HFPL 5004 EDG 33B* HFFL 180-5T38 5.00 38.00 180.0 1500.0 24.8 32.0 4.0 150.00 HFPL 5004 EDG 33B* HFFR 130-5T38 5.00 38.00 130.0 180.0 24.8 32.0 5.2 150.00 GRIP 5005Y EDG 33B* HFFR 180-5T38 5.00 38.00 180.0 1500.0 24.8 32.0 4.0 150.00 GRIP 5005Y EDG 33B* HFFL 90-6T32 6.00 32.00 90.0 180.0 24.8 32.0 5.2 150.00 HFPL 6004 EDG 33B* HFFR 90-6T32 6.00 32.00 90.0 180.0 24.8 32.0 5.2 150.00 GRIP 6030Y EDG 33B* HFFL 180-6T38 6.00 38.00 180.0 400.0 24.8 32.0 5.2 150.00 HFPL 6004 EDG 33B* HFFR 180-6T38 6.00 38.00 180.0 400.0 24.8 32.0 5.2 150.00 GRIP 6030Y EDG 33B* • After initial groove, no limitation of widening groove outward or toward center. • DGN & GRIP inserts can be used only with right-hand adapters, HGPL inserts with left-hand blades • For user guide, see pages 676-688 (1) HGPL 4...Y with LH blade (2) Minimum penetration diameter (3) Maximum penetration diameter (4) Master insert identification * Optional, to be ordered separately For inserts, see pages: DGN-MF (541) • DGR/L-B (542) • GRIP-T (295) • GRIPA (296) • GRIPA (full radius) (296) • HFPR/L (656) • HFPR/L (full radius) (656) • GRIP (294) • GRIP (full radius) (295) • DGN/DGNC/DGNM-C (539) • DGN/DGNM-J/JS/JT (544) • DGN-W (540) • HGPL (658) For holders, see pages: SGTBF (691) • SGTBU/SGTBN (690) • UBHCR/L (691) Coolant Outlet HAR/L HFAEL Face Machining Adapter Holders H HF Adapter OAL OAW B Right-hand shown Designation OAL B H HF OAW HAR/L 25C 110.00 25.0 25.0 25.0 39.00 SR 14-519 T-20/3 HAR/L 32C 130.00 32.0 32.0 32.0 46.00 SR 14-519 T-20/3 • Holders for adapters HFAER/L & HGAER/L, HFAIR/L & HGAIR/L For tools, see pages: HFAER/L-4 (646) • HFAER/L-5T, 6T (647) • HFAIR/L-4 (651) • HFAIR/L-DG (652) • HGAER/L-3 (646) • HGAIR/L-3 (648) Coolant Outlet HAPR/L Face Machining Perpendicular H HF HFAEL Adapter Holders for Adapters B OAL Left-hand shown Designation OAL H HF B HAPR/L 25C 124.00 25.0 25.0 25.0 SR 14-519 T-20/3 HAPR/L 32C 144.00 32.0 32.0 32.0 SR 14-519 T-20/3 • Holders for adapters HFAER/L & HGAER/L, HFAIR/L & HGAIR/L. For tools, see pages: HFAER/L-4 (646) • HFAER/L-5T, 6T (647) • HFAIR/L-4 (651) • HFAIR/L-DG (652) • HGAER/L-3 (646) • HGAIR/L-3 (648) 645
