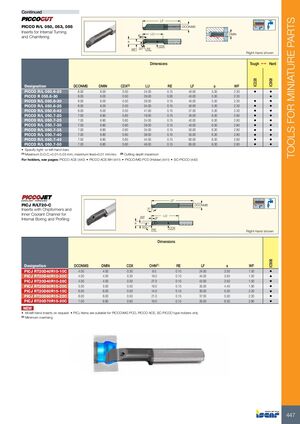

Continued TOOLS FOR MINIATURE PARTS LF PICCO R/L 050, 053, 055 DCONMS Inserts for Internal Turning LU DMIN and Chamfering 8° a CDX WF 20° RE Right-hand shown Dimensions Tough 1 Hard IC228 IC908 Designation DCONMS DMIN CDX(2) LU RE LF a WF PICCO R/L 050.6-25 6.00 6.00 0.50 24.00 0.15 40.00 5.30 2.30 • • PICCO R 055.6-30 6.00 6.00 0.50 29.00 0.05 45.00 5.30 2.30 • PICCO R/L 050.6-30 6.00 6.00 0.50 29.00 0.15 45.00 5.30 2.30 • • PICCO R/L 050.6-35 6.00 6.00 0.50 34.00 0.15 50.00 5.30 2.30 • • PICCO R/L 050.6-42 6.00 6.00 0.50 41.00 0.15 57.00 5.30 2.30 • • PICCO R/L 050.7-20 7.00 6.80 0.60 19.00 0.15 35.00 6.30 2.80 • • PICCO R/L 050.7-25 7.00 6.80 0.60 24.00 0.15 40.00 6.30 2.80 • • PICCO R/L 050.7-30 7.00 6.80 0.60 29.00 0.15 45.00 6.30 2.80 • • PICCO R/L 050.7-35 7.00 6.80 0.60 34.00 0.15 50.00 6.30 2.80 • • PICCO R/L 050.7-40 7.00 6.80 0.60 39.00 0.15 55.00 6.30 2.80 • • PICCO R/L 050.7-45 7.00 6.80 0.60 44.00 0.15 60.00 6.30 2.80 • • PICCO R/L 050.7-50 7.00 6.80 0.60 49.00 0.15 65.00 6.30 2.80 • • • Specify right- or left-hand bars (1) Maximum D.O.C.=0.01-0.03 mm, maximum feed=0.01 mm/rev. (2) Cutting depth maximum For holders, see pages: PICCO ACE (440) • PICCO ACE-BH (441) • PICCO/MG PCO (Holder) (441) • SC-PICCO (442) LF PICJ R/LT20-C DCONMS Inserts with Chipformers and 5° Inner Coolant Channel for LU WF 8° Internal Boring and Profiling a 20° CDX RE Right-hand shown Dimensions IC908 Designation DCONMS DMIN CDX OHN(1) RE LF a WF PICJ RT20D40R10-10C 4.00 4.00 0.30 9.0 0.10 24.00 3.50 1.50 • PICJ RT20D40R10-20C 4.00 4.00 0.30 19.0 0.10 34.00 3.50 1.50 • PICJ RT20D40R10-28C 4.00 4.00 0.30 27.0 0.10 42.00 3.50 1.50 • PICJ RT20D50R15-20C 5.00 5.00 0.50 19.0 0.15 35.00 4.40 1.90 • PICJ RT20D60R15-15C 6.00 6.00 0.50 14.0 0.15 30.00 5.30 2.30 • PICJ RT20D60R15-22C 6.00 6.00 0.50 21.0 0.15 37.00 5.30 2.30 • PICJ RT20D70R15-20C 7.00 6.80 0.60 19.0 0.15 35.00 6.30 2.80 • NEW • All left-hand inserts on request • PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only (1) Minimum overhang 447
