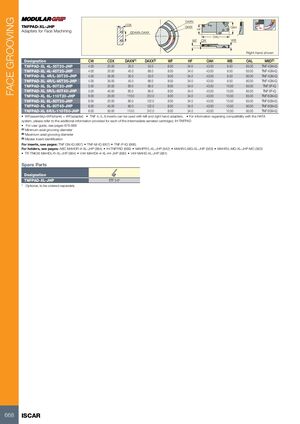

FACE GROOVING DAXN CDX TNFPAD-XL-JHP DAXX OAH HF Adapters for Face Machining ØDAXN-DAXX OAL WF CW WB Right-hand shown Designation CW CDX DAXN(1) DAXX(2) WF HF OAH WB OAL MIID(3) TNFPAD-XL 4L-35T20-JHP 4.00 20.00 35.0 53.0 8.00 34.0 43.00 9.50 65.00 TNF 4GN-IQ TNFPAD-XL 4L-45T20-JHP 4.00 20.00 45.0 68.0 8.00 34.0 43.00 9.50 65.00 TNF 4GN-IQ TNFPAD-XL 4R/L-35T35-JHP 4.00 35.00 35.0 53.0 8.00 34.0 43.00 9.50 80.00 TNF 4GN-IQ TNFPAD-XL 4R/L-45T35-JHP 4.00 35.00 45.0 68.0 8.00 34.0 43.00 9.50 80.00 TNF 4GN-IQ TNFPAD-XL 5L-60T20-JHP 5.00 20.00 60.0 90.0 8.00 34.0 43.00 10.00 65.00 TNF 5P-IQ TNFPAD-XL 5R/L-60T40-JHP 5.00 40.00 60.0 90.0 8.00 34.0 43.00 10.00 85.00 TNF 5P-IQ TNFPAD-XL 6L-110T20-JHP 6.00 20.00 110.0 312.0 8.00 34.0 43.00 10.50 65.00 TNF 6GN-IQ TNFPAD-XL 6L-80T20-JHP 6.00 20.00 80.0 122.0 8.00 34.0 43.00 10.50 65.00 TNF 6GN-IQ TNFPAD-XL 6L-80T45-JHP 6.00 45.00 80.0 122.0 8.00 34.0 43.00 10.50 90.00 TNF 6GN-IQ TNFPAD-XL 6R/L-110T50-JHP 6.00 50.00 110.0 312.0 8.00 34.0 43.00 10.50 95.00 TNF 6GN-IQ • WF(assembly)=WF(shank) + WF(adapter) • TNF 4..5..6 inserts can be used with left and right hand adapters. • For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-TNFPAD • For user guide, see pages 676-688 (1) Minimum axial grooving diameter (2) Maximum axial grooving diameter (3) Master insert identification For inserts, see pages: TNF GN-IQ (667) • TNF-M-IQ (667) • TNF-P-IQ (666) For holders, see pages: ABC MAHDR-#-XL-JHP (884) • IH-TNFPAD (669) • MAHPR/L-XL-JHP (642) • MAHR/L-MG-XL-JHP (563) • MAHR/L-MG-XL-JHP-MC (563) • TR TNK36 MAHDL-R-XL-JHP (884) • V## MAHD#-#-XL-##-JHP (880) • V## MAHD-XL-JHP (881) Spare Parts Designation TNFPAD-XL-JHP ETF 3-6* * Optional, to be ordered separately 668 ISCAR
