Токарные инструменты Iscar (часть 1) 2026 - страница 126

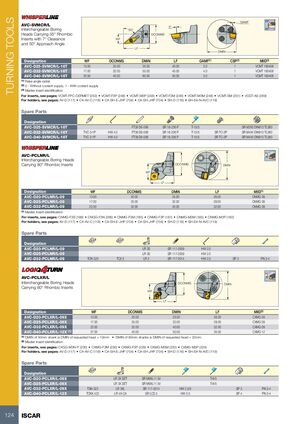

TURNING TOOLS 52º GAMF AVC-SVMCR/L 5° Interchangeable Boring 50° 93º Heads Carrying 35° Rhombic DCONMS Inserts with 7° Clearance WF and 50° Approach Angle LF DMIN Designation WF DCONMS DMIN LF GAMF(1) CSP(2) MIID(3) AVC-D25-SVMCR/L-16T 13.00 25.00 35.00 40.00 3.0 1 VCMT 160408 AVC-D32-SVMCR/L-16T 17.00 32.00 50.00 45.00 4.0 1 VCMT 160408 AVC-D40-SVMCR/L-16T 20.50 40.00 60.00 50.00 3.0 1 VCMT 160408 (1) Rake angle radial (2) 0 - Without coolant supply, 1 - With coolant supply (3) Master insert identification For inserts, see pages: VCMT-FPC-CERMET (250) • VCMT-F3P (248) • VCMT-M3P (248) • VCMT-F3M (249) • VCMT-M3M (249) • VCMT-SM (251) • VCGT-AS (269) For holders, see pages: AV-D (117) • C#-AV-C (118) • C#-SH-E-JHP (704) • C#-SH-JHP (704) • SH-D (116) • SH-S#-N-AVC (119) Spare Parts Designation AVC-D25-SVMCR/L-16T FT39 D6-5X8 SR 16-236 P T-15/5 SR M3X3 DIN913 TL360 AVC-D32-SVMCR/L-16T TVC 3-1P HW 4.0 FT39 D6-5X8 SR 16-236 P T-15/5 SR TC-3P SR M4X4 DIN913 TL360 AVC-D40-SVMCR/L-16T TVC 3-1P HW 4.0 FT39 D6-5X8 SR 16-236 P T-15/5 SR TC-3P SR M4X4 DIN913 TL360 AVC-PCLNR/L 95º Interchangeable Boring Heads Carrying 80° Rhombic Inserts DCONMS DMIN WF LF Designation WF DCONMS DMIN LF MIID(1) AVC-D20-PCLNR/L-09 13.00 20.00 25.00 26.00 CNMG 09 AVC-D25-PCLNR/L-09 17.00 25.00 32.00 28.00 CNMG 09 AVC-D32-PCLNR/L-09 22.00 32.00 40.00 32.00 CNMG 09 (1) Master insert identification For inserts, see pages: CNMG-F3S (186) • CNGG-F3N (266) • CNMG-F3M (185) • CNMG-F3P (181) • CNMG-M3M (185) • CNMG-M3P (182) For holders, see pages: AV-D (117) • C#-AV-C (118) • C#-SH-E-JHP (704) • C#-SH-JHP (704) • SH-D (116) • SH-S#-N-AVC (119) Spare Parts Designation AVC-D20-PCLNR/L-09 LR 3S SR 117-2009 HW 2.0 AVC-D25-PCLNR/L-09 LR 3S SR 117-2009 HW 2.0 AVC-D32-PCLNR/L-09 TCN 323 TCX 3 LR 3 SR 117-2014 HW 2.5 SP 3 PN 3-4 AVC-PCLXR/L 95º Interchangeable Boring Heads DCONMS DMIN Carrying 80° Rhombic Inserts WF LF Designation WF DCONMS DMIN LF MIID(2) AVC-D20-PCLXR/L-09X 13.00 20.00 25.00 26.00 CXMG 09 AVC-D25-PCLXR/L-09X 17.00 25.00 32.00 28.00 CXMG 09 AVC-D32-PCLXR/L-09X 22.00 32.00 40.00 32.00 CXMG 09 AVC-D40-PCLXR/L-12X (1) 27.00 40.00 50.00 35.00 CXMG 12 (1) DMIN of 50mm shank is DMIN of requested head + 10mm • DMIN of 60mm shanks is DMIN of requested head + 20mm (2) Master insert identification For inserts, see pages: CXGG-M3N-P (230) • CXMG-F3M (230) • CXMG-F3P (229) • CXMG-M3M (230) • CXMG-M3P (229) For holders, see pages: AV-D (117) • C#-AV-C (118) • C#-SH-E-JHP (704) • C#-SH-JHP (704) • SH-D (116) • SH-S#-N-AVC (119) Spare Parts Designation AVC-D20-PCLXR/L-09X LR 3X SET SR M6XL11.5V T-8/5 AVC-D25-PCLXR/L-09X LR 3X SET SR M6XL11.5V T-8/5 AVC-D32-PCLXR/L-09X TSN 323 LR 3XL SR 117-2014 HW 2.5/5 SP 3 PN 3-4 AVC-D40-PCLXR/L-12X TCNX 423 LR 4X-CA SR LCS 5 HW 3.0 SP 4 PN 3-4 124 ISCAR
