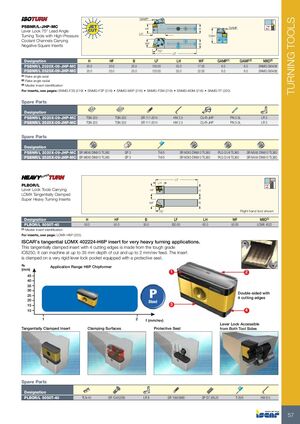

Токарные инструменты Iscar (часть 1) 2026 - страница 59

GAMP TURNING TOOLS PSBNR/L-JHP-MC HF H GAMF 75º Lever Lock 75° Lead Angle LH Turning Tools with High-Pressure OAH Coolant Channels Carrying WF B Negative Square Inserts 75º LF Designation H HF B LF LH WF GAMP(1) GAMF(2) MIID(3) PSBNR/L 2020X-09-JHP-MC 20.0 20.0 20.0 105.00 35.0 17.00 6.0 6.0 SNMG 090408 PSBNR/L 2525X-09-JHP-MC 25.0 25.0 25.0 120.00 35.0 22.00 6.0 6.0 SNMG 090408 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: SNMG-F3S (219) • SNMG-F3P (216) • SNMG-M3P (216) • SNMG-F3M (218) • SNMG-M3M (218) • SNMG-TF (220) Spare Parts Designation PSBNR/L 2020X-09-JHP-MC TSN 323 TSN 333 SR 117-2014 HW 2.5 CU-R-JHP PN 3-3L LR 3 PSBNR/L 2525X-09-JHP-MC TSN 323 TSN 333 SR 117-2014 HW 2.5 CU-R-JHP PN 3-3L LR 3 Spare Parts Designation PSBNR/L 2020X-09-JHP-MC SR M6X6 DIN913 TL360 SP 3 T-8/5 SR M3X3 DIN913 TL360 PLG G1/8 TL360 SR M5X5 DIN913 TL360 PSBNR/L 2525X-09-JHP-MC SR M6X6 DIN913 TL360 SP 3 T-8/5 SR M3X3 DIN913 TL360 PLG G1/8 TL360 SR M4X4 DIN913 TL360 LF LH PLBOR/L 75 º Lever Lock Tools Carrying HF H LOMX Tangentially Clamped Super Heavy Turning Inserts WF B 75˚ Right hand tool shown Designation H HF B LF LH WF MIID(1) PLBOR/L 5050T-40 50.0 50.0 50.0 300.00 60.0 50.00 LOMX 4022 (1) Master insert identification For inserts, see page: LOMX-H6P (225) ISCAR’s tangential LOMX 402224-H6P insert for very heavy turning applications. This tangentially clamped insert with 4 cutting edges is made from the tough grade IC8250� It can machine at up to 35 mm depth of cut and up to 2 mm/rev feed� The insert is clamped on a very rigid lever lock pocket equipped with a protective seat� ap Application Range H6P Chipformer (mm) 1 2 45 40 35 30 Double-sided with 25 4 cutting edges 20 15 3 10 4 1 2 f (mm/rev) Lever Lock Accessible Tangentially Clamped Insert Clamping Surfaces Protective Seat from Both Tool Sides Spare Parts Designation PLBOR/L 5050T-40 TLN 40 SR 10402265 LR 8 SR 10643960 SP D7.5XL23 T-20/5 HW 6.0 57
