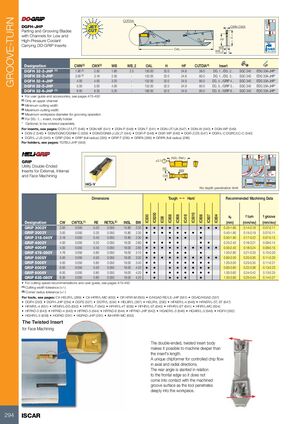

GROOVE-TURN CUTDIA DGFH-JHP CWN-CWX Parting and Grooving Blades Max. Min. with Channels for Low and H High-Pressure Coolant HF Min. Max. Carrying DO-GRIP Inserts WB OAL WB_2 Bar Max Designation CWN(2) CWX(3) WB WB_2 OAL H HF CUTDIA(4) Insert DGFH 32-2-JHP (1) 1.90 (5) 2.50 1.80 2.5 150.00 32.0 24.8 39.0 DG. 1.../DG. 2... SGC 340 EDG 33A-JHP* DGFH 32-3-JHP 3.00 (5) 3.18 2.50 - 152.00 32.0 24.8 90.0 DG. 1.../DG. 3... SGC 340 EDG 33A-JHP* DGFH 32-4-JHP 4.00 4.00 3.20 - 152.00 32.0 24.9 90.0 DG. 4.../GRIP 4... SGC 340 EDG 33A-JHP* DGFH 32-5-JHP 5.00 5.00 4.00 - 152.00 32.0 24.9 90.0 DG. 5.../GRIP 5... SGC 340 EDG 33A-JHP* DGFH 32-6-JHP (1) 6.00 6.35 5.20 - 160.00 32.0 24.9 90.0 DG. 6.../GRIP 6... SGC 340 EDG 33A-JHP* • For user guide and accessories, see pages 475-492 (1) Only an upper channel (2) Minimum cutting width (3) Maximum cutting width (4) Maximum workpiece diameter for grooving operation (5) For DG. 1... insert, modify holder * Optional, to be ordered separately For inserts, see pages: DGN-LF/LFT (546) • DGN-MF (541) • DGN-P (548) • DGN-T (541) • DGN-UT/UA (547) • DGN-W (540) • DGN-WP (549) • DGN-Z (546) • DGN/DGNC/DGNM-C (539) • DGN/DGNM-J/JS/JT (544) • DGR-P (548) • DGR-WP (549) • DGR-Z/ZS (547) • DGR/L-C DGRC/LC-C (540) • DGR/L-J/JS (545) • GRIP (294) • GRIP (full radius) (295) • GRIP-T (295) • GRIPA (296) • GRIPA (full radius) (296) For holders, see pages: TGTBU-JHP (559) INSL (Ref.) GRIP ±0.1 Utility Double-Ended RE Inserts for External, Internal BW and Face Machining CW No depth penetration limit Dimensions Tough 1 Hard Recommended Machining Data IC8250 IC5010 ap f turn f groove IC830 IC808 IC908 IC418 IC806 IC807 IC804 IC08 Designation CW CWTOL(1) RE RETOL(2) INSL BW (mm) (mm/rev) (mm/rev) GRIP 3002Y 3.00 0.050 0.20 0.050 15.80 2.30 • • • • • • • • 0.25-1.80 0.14-0.18 0.07-0.11 GRIP 3003Y 3.00 0.050 0.30 0.050 15.80 2.30 • • • • • • • • 0.40-1.80 0.15-0.19 0.07-0.11 GRIP 318-040Y 3.18 0.050 0.40 0.050 15.80 2.30 • • • • • 0.50-1.90 0.17-0.22 0.07-0.12 GRIP 4002Y 4.00 0.050 0.20 0.050 19.00 2.80 • • • • • • • 0.25-2.40 0.16-0.21 0.09-0.14 GRIP 4004Y 4.00 0.050 0.40 0.050 19.00 2.80 • • • • • • • • • • 0.50-2.40 0.18-0.24 0.09-0.15 GRIP 476-080Y 4.76 0.050 0.80 0.050 19.00 3.10 • • • • • • 1.00-2.80 0.21-0.33 0.10-0.20 GRIP 5005Y 5.00 0.050 0.50 0.050 19.00 3.30 • • • • • • • • • • 0.60-3.00 0.20-0.30 0.11-0.20 GRIP 5008Y 5.00 0.050 0.80 0.050 19.00 3.40 • • • • • • • • 1.00-3.00 0.23-0.35 0.11-0.21 GRIP 6005Y 6.00 0.050 0.50 0.050 19.00 4.20 • • • • • • • • 0.60-3.60 0.22-0.36 0.13-0.23 GRIP 6008Y 6.00 0.050 0.80 0.050 19.00 4.20 • • • • • • • • 1.00-3.60 0.24-0.42 0.13-0.25 GRIP 635-080Y 6.35 0.050 0.80 0.050 19.00 4.20 • • • • • 1.00-3.80 0.25-0.44 0.14-0.27 • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: C#-HELIR/L (289) • C#-HFIR/L-MC (653) • CR HFIR-M (655) • D/HGAD RE/LE-JHP (561) • DGAD/HGAD (537) • DGFH (293) • DGFH-JHP (294) • DGFS (527) • DGTR/L (534) • HELIIR/L (397) • HELIR/L (290) • HFAER/L-4 (646) • HFAER/L-5T, 6T (647) • HFAIR/L-4 (651) • HFAIR/L-DG (652) • HFFR/L-T (645) • HFHR/L-4T (639) • HFHR/L-5T (640) • HFHR/L-6T (641) • HFIR/L-MC (654) • HFPAD-3 (643) • HFPAD-4 (643) • HFPAD-5 (644) • HFPAD-6 (644) • HFPAD-JHP (642) • HGAER/L-3 (646) • HGAIR/L-3 (648) • HGFH (292) • HGHR/L-3 (638) • HGPAD (291) • HGPAD-JHP (291) • IM-HFIR-MC (653) The Twisted Insert for Face Machining The double-ended, twisted insert body makes it possible to machine deeper than the insert’s length� A unique chipformer for controlled chip flow in axial and radial directions� The rear angle is slanted in relation to the frontal edge so it does not come into contact with the machined groove surface as the tool penetrates deeply into the workpiece� 294 ISCAR
