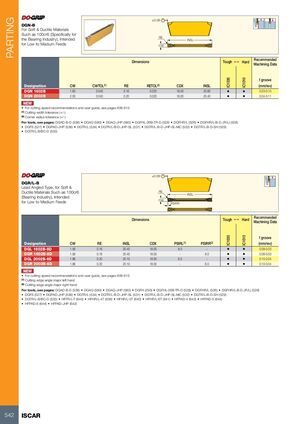

PARTING ±0.08 DGN-B For Soft & Ductile Materials Such as 100cr6 (Specifically for RE the Bearing Industry), Intended INSL for Low to Medium Feeds CW Recommended Dimensions Tough 1 Hard Machining Data f groove IC1030 IC1010 Designation CW CWTOL(1) RE RETOL(2) CDX INSL (mm/rev) DGN 1602B 1.60 0.040 0.16 0.020 18.00 20.60 • • 0.03-0.10 DGN 2002B 2.00 0.040 0.20 0.020 18.00 20.40 • • 0.04-0.11 NEW • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: DGAD-B-D (538) • DGAQ (580) • DGAQ-JHP (580) • DGFHL-26B-TR-D (528) • DGFHR/L (526) • DGFHR/L-B-D..(R/L) (528) • DGFS (527) • DGPAD-JHP (538) • DGTR/L (534) • DGTR/L-B-D-JHP-SL (531) • DGTR/L-B-D-JHP-SL-MC (532) • DGTR/L-B-D-SH (529) • DGTR/L-B/BC-D (533) ±0.08 DGR/L-B Lead Angled Type, for Soft & Ductile Materials Such as 100cr6 RE INSL (Bearing Industry), Intended CW for Low to Medium Feeds PSIRR Recommended Dimensions Tough 1 Hard Machining Data f groove IC1030 Designation CW RE INSL CDX PSIRL(1) PSIRR(2) IC1010 (mm/rev) DGL 1602B-8D 1.56 0.16 20.40 18.00 8.0 - • • 0.08-0.03 DGR 1602B-8D 1.56 0.16 20.40 18.00 - 8.0 • • 0.08-0.03 DGL 2002B-6D 1.96 0.20 20.10 18.00 6.0 - • • 0.10-0.04 DGR 2002B-6D 1.96 0.20 20.10 18.00 - 6.0 • • 0.10-0.04 NEW • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting edge angle major left hand (2) Cutting edge angle major right hand For tools, see pages: DGAD-B-D (538) • DGAQ (580) • DGAQ-JHP (580) • DGFH (293) • DGFHL-26B-TR-D (528) • DGFHR/L (526) • DGFHR/L-B-D..(R/L) (528) • DGFS (527) • DGPAD-JHP (538) • DGTR/L (534) • DGTR/L-B-D-JHP-SL (531) • DGTR/L-B-D-JHP-SL-MC (532) • DGTR/L-B-D-SH (529) • DGTR/L-B/BC-D (533) • HFFR/L-T (645) • HFHR/L-4T (639) • HFHR/L-5T (640) • HFHR/L-6T (641) • HFPAD-4 (643) • HFPAD-5 (644) • HFPAD-6 (644) • HFPAD-JHP (642) 542 ISCAR
