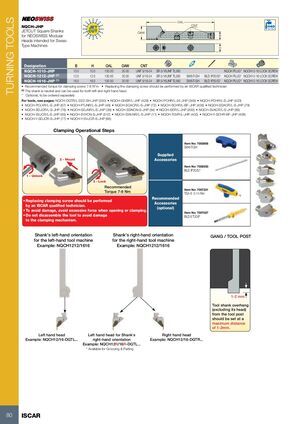

Токарные инструменты Iscar (часть 1) 2026 - страница 82

TURNING TOOLS OAL NQCH-JHP CNT Bar Max JETCUT Square Shanks OAW for NEOSWISS Modular B Heads intended for Swiss- Type Machines H Designation B H OAL OAW CNT NQCH-1010-JHP 10.0 10.0 100.00 20.00 UNF 5/16-24 SR 5/16UNF TL360 NQCH PLUG* NQCH12-16 LOCK SCREW NQCH-1212-JHP (1) 12.0 12.0 100.00 20.00 UNF 5/16-24 SR 5/16UNF TL360 SW6-T-SH BLD IP20/S7 NQCH PLUG* NQCH12-16 LOCK SCREW NQCH-1616-JHP (1) 16.0 16.0 100.00 20.00 UNF 5/16-24 SR 5/16UNF TL360 SW6-T-SH BLD IP20/S7 NQCH PLUG* NQCH12-16 LOCK SCREW • Recommended torque for clamping screw 7-8 N*m • Replacing the clamping screw should be performed by an ISCAR qualified technician (1) The shank is neutral and can be used for both left and right hand head * Optional, to be ordered separately For tools, see pages: NQCH-DGTR/L-D22-SH-JHP (530) • NQCH-GHSR/L-JHP (428) • NQCH-PCHR/L-24-JHP (348) • NQCH-PCHR/L-S-JHP (433) • NQCH-PCLXR/L-S-JHP (67) • NQCH-PTJNR/L-S-JHP (48) • NQCH-SCACR/L-S-JHP (72) • NQCH-SCHR/L-BF-JHP (408) • NQCH-SDACR/L-S-JHP (79) • NQCH-SDJCR/L-S-JHP (76) • NQCH-SDJNR/L-S-JHP (36) • NQCH-SDNCN-S-JHP (84) • NQCH-SER/L-JHP (800) • NQCH-SVACR/L-S-JHP (89) • NQCH-SVJCR/L-S-JHP (85) • NQCH-SVVCN-S-JHP (512) • NQCH-SWLNR/L-S-JHP (11) • NQCH-TGVR/L-JHP (405) • NQCH-Y-SCHR-BF-JHP (408) • NQCH-Y-SDJCR-S-JHP (77) • NQCH-Y-SVJCR-S-JHP (86) Clamping Operational Steps Item No: 7003805 SW6-T-SH Supplied 2 - Mount Accessories Item No: 7002553 BLD IP20/S7 1 - Unlock 3 - Lock Recommended Item No: 7007221 Torque 7-8 Nm TSA 6 5-14 Nm Recommended • Replacing clamping screw should be performed Accessories by an ISCAR qualified technician. (optional) • To avoid damage, avoid excessive force when opening or clamping. Item No: 7007027 • Do not disassemble the tool to avoid damage BLD 6 T20IP to the clamping mechanism. Shank’s left-hand orientation Shank’s right-hand orientation GANG / TOOL POST for the left-hand tool machine for the right-hand tool machine Example: NQCH1212/1616 Example: NQCH1212/1616 1-2 mm Tool shank overhang (excluding its head) from the tool post should be set at a maximum distance of 1-2mm. Left hand head Left hand head for Shank’s Right hand head Example: NQCH12/16-DGTL... right-hand orientation Example: NQCH12/16-DGTR... Example: NQCH12R/16R-DGTL... * Available for Grooving & Parting 80 ISCAR
