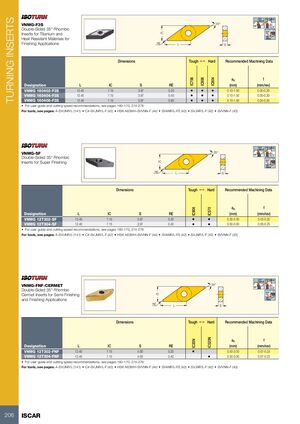

Токарные инструменты Iscar (часть 1) 2026 - страница 208

TURNING INSERTS 50° 70°MAX MAX VNMG-F3S 35° 93° 72.5º Double-Sided 35° Rhombic 93º Inserts for Titanium and IC 50° Heat Resistant Materials for MAX Finishing Applications RE L S Dimensions Tough 1 Hard Recommended Machining Data ap f IC706 IC806 IC804 Designation L IC S RE (mm) (mm/rev) VNMG 160402-F3S 12.40 7.15 3.97 0.20 • • • 0.10-1.50 0.05-0.20 VNMG 160404-F3S 12.40 7.15 3.97 0.40 • • • 0.10-1.50 0.05-0.30 VNMG 160408-F3S 12.40 7.15 3.97 0.80 • • • 0.10-1.50 0.05-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-SVUNR/L (141) • C#-SVJNR/L-F (42) • HSK A63WH-SVVNN-F (44) • SVANR/L-FS (42) • SVJNR/L-F (42) • SVVNN-F (43) 50° 70°MAX MAX VNMG-SF 35° 93° 72.5º Double-Sided 35° Rhombic 93º Inserts for Super Finishing IC 50° MAX RE L S Dimensions Tough 1 Hard Recommended Machining Data ap f IC908 IC570 Designation L IC S RE (mm) (mm/rev) VNMG 12T302-SF 12.40 7.15 3.97 0.20 • • 0.30-2.00 0.03-0.20 VNMG 12T304-SF 12.40 7.15 3.97 0.40 • • 0.50-3.00 0.05-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-SVUNR/L (141) • C#-SVJNR/L-F (42) • HSK A63WH-SVVNN-F (44) • SVANR/L-FS (42) • SVJNR/L-F (42) • SVVNN-F (43) 50° 70°MAX MAX VNMG-FNF-CERMET 35° 93° 72.5º Double-Sided 35° Rhombic 93º Cermet Inserts for Semi-Finishing IC 50° and Finishing Applications MAX RE L S Dimensions Tough 1 Hard Recommended Machining Data IC520N ap f IC20N Designation L IC S RE (mm) (mm/rev) VNMG 12T302-FNF 12.40 7.15 4.00 0.20 • 0.50-3.00 0.07-0.23 VNMG 12T304-FNF 12.40 7.15 4.00 0.40 • 0.50-3.00 0.07-0.23 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-SVUNR/L (141) • C#-SVJNR/L-F (42) • HSK A63WH-SVVNN-F (44) • SVANR/L-FS (42) • SVJNR/L-F (42) • SVVNN-F (43) 206 ISCAR
