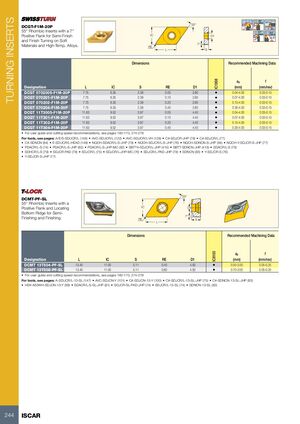

TURNING INSERTS 29° MAX 93º-95º 55° 107.5° DCGT-F1M-20P 16º 91° 30º MAX 55° Rhombic Inserts with a 7° MAX 27° 60° MAX MAX Positive Flank for Semi-Finish IC D1 93° 62.5º and Finish Turning on Soft 7° Materials and High-Temp. Alloys. RE L S Dimensions Recommended Machining Data ap f IC1008 Designation L IC S RE D1 (mm) (mm/rev) DCGT 0702005-F1M-20P 7.75 6.35 2.38 0.05 2.80 • 0.04-4.00 0.03-0.15 DCGT 070201-F1M-20P 7.75 6.35 2.38 0.10 2.80 • 0.07-4.00 0.03-0.15 DCGT 070202-F1M-20P 7.75 6.35 2.38 0.20 2.80 • 0.15-4.00 0.03-0.15 DCGT 070204-F1M-20P 7.75 6.35 2.38 0.40 2.80 • 0.30-4.00 0.03-0.15 DCGT 11T3005-F1M-20P 11.63 9.52 3.97 0.05 4.40 • 0.04-4.00 0.03-0.15 DCGT 11T301-F1M-20P 11.63 9.52 3.97 0.10 4.40 • 0.07-4.00 0.03-0.15 DCGT 11T302-F1M-20P 11.63 9.52 3.97 0.20 4.40 • 0.15-4.00 0.03-0.15 DCGT 11T304-F1M-20P 11.63 9.52 3.97 0.40 4.40 • 0.30-4.00 0.03-0.15 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/E/S-SDUCR/L (148) • AVC-SDUCR/L (122) • AVC-SDUCR/L-VH (128) • C#-SDJCR-JHP (78) • C#-SDJCR/L (77) • C#-SDNCN (84) • E-SDUCR/L-HEAD (148) • NQCH-SDACR/L-S-JHP (79) • NQCH-SDJCR/L-S-JHP (76) • NQCH-SDNCN-S-JHP (84) • NQCH-Y-SDJCR-S-JHP (77) • PDACR/L-S (74) • PDACR/L-S-JHP (82) • PDACR/L-S-JHP-MC (82) • SBTT#-SDJCR/L-JHP (415) • SBTT-SDNCN-JHP (415) • SDACR/L-S (79) • SDHCR/L-S (79) • SDJCR-PAD (78) • SDJCR/L (75) • SDJCR/L-JHP-MC (76) • SDJCR/L-PAD-JHP (78) • SDNCN (83) • Y-SDJCR-S (76) • Y-SDJCR-S-JHP (77) 55° DCMT-PF-SL 55° Rhombic Inserts with a Positive Flank and Locating IC D1 Bottom Ridge for Semi- 7° Finishing and Finishing RE S L Dimensions Recommended Machining Data ap f IC8150 Designation L IC S RE D1 (mm) (mm/rev) DCMT 13T504-PF-SL 13.40 11.00 5.11 0.40 4.50 • 0.50-3.00 0.05-0.25 DCMT 13T508-PF-SL 13.40 11.00 5.11 0.80 4.50 • 0.70-3.00 0.05-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-SDUCR/L-13-SL (147) • AVC-SDJCN-Y (101) • C#-SDJCN-13-Y (100) • C#-SDJCR/L-13-SL-JHP (75) • C#-SDNCN-13-SL-JHP (83) • HSK A63WH-SDJCN-13-Y (99) • SDACR/L-S-SL-JHP (81) • SDJCR-SL-PAD-JHP (74) • SDJCR/L-13-SL (74) • SDNCN-13-SL (83) 244 ISCAR
