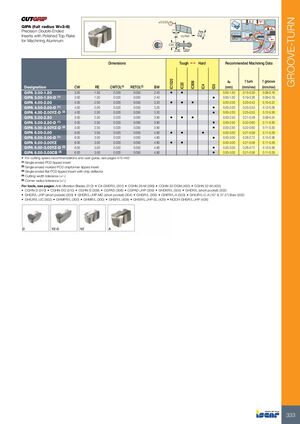

GROOVE-TURN ±0.025 GIPA (full radius W=3-6) Precision Double-Ended 7° Inserts with Polished Top Rake 5 15 Ref. for Machining Aluminum CW RE BW Dimensions Tough 1 Hard Recommended Machining Data ap f turn f groove IC1520 IC806 IC20 IC4 ID5 Designation CW RE CWTOL(4) RETOL(5) BW (mm) (mm/rev) (mm/rev) GIPA 3.00-1.50 3.00 1.50 0.020 0.050 2.40 • • 0.00-1.50 0.15-0.30 0.08-0.16 GIPA 3.00-1.50-D (1) 3.00 1.50 0.020 0.050 2.40 • 0.00-1.50 0.19-0.36 0.09-0.19 GIPA 4.00-2.00 4.00 2.00 0.020 0.050 3.20 • • • 0.00-2.00 0.20-0.43 0.10-0.22 GIPA 4.00-2.00-D (1) 4.00 2.00 0.020 0.050 3.20 • 0.00-2.00 0.25-0.53 0.12-0.26 GIPA 4.00-2.00YZ-D (2) 4.00 2.00 0.020 0.050 3.20 • 0.00-2.00 0.25-0.53 0.12-0.26 GIPA 5.00-2.50 5.00 2.50 0.020 0.050 3.90 • • • 0.00-2.50 0.21-0.48 0.09-0.24 GIPA 5.00-2.50-D (1) 5.00 2.50 0.020 0.050 3.90 • 0.00-2.50 0.22-0.60 0.11-0.30 GIPA 5.00-2.50YZ-D (2) 5.00 2.50 0.020 0.050 3.90 • 0.00-2.50 0.22-0.60 0.11-0.30 GIPA 6.00-3.00 6.00 3.00 0.020 0.050 4.80 • • • 0.00-3.00 0.21-0.58 0.11-0.29 GIPA 6.00-3.00-D (1) 6.00 3.00 0.020 0.050 4.80 • 0.00-3.00 0.26-0.72 0.13-0.36 GIPA 6.00-3.00YZ 6.00 3.00 0.020 0.050 4.80 • • 0.00-3.00 0.21-0.58 0.11-0.29 GIPA 6.00-3.00YZ-D (2) 6.00 3.00 0.020 0.050 4.80 • 0.00-3.00 0.26-0.72 0.13-0.36 GIPA 6.00-3.00CB (3) 6.00 3.00 0.020 0.050 4.80 • 0.00-3.00 0.21-0.58 0.11-0.29 • For cutting speed recommendations and user guide, see pages 475-492 (1) Single-ended PCD tipped insert (2) Single-ended molded PCD chipformer tipped insert (3) Single-ended flat PCD tipped insert with chip deflector (4) Cutting width tolerance (+/-) (5) Corner radius tolerance (+/-) For tools, see pages: Anti-Vibration Blades (312) • C#-GHDR/L (301) • CGHN 26-M (399) • CGHN 32-DGM (400) • CGHN 32-M (400) • CGHN-D (310) • CGHN-DG (310) • CGHN-S (309) • CGPAD (308) • CGPAD-JHP (309) • GHDKR/L (503) • GHDR/L (short pocket) (302) • GHDR/L-JHP (short pocket) (303) • GHDR/L-JHP-MC (short pocket) (304) • GHGR/L (305) • GHIFR/L-A (503) • GHIUR/L-C-A (15° & 27.5°) Bars (502) • GHIUR/L-UC (502) • GHMPR/L (300) • GHMR/L (300) • GHSR/L (428) • GHSR/L-JHP-SL (429) • NQCH-GHSR/L-JHP (428) 333
