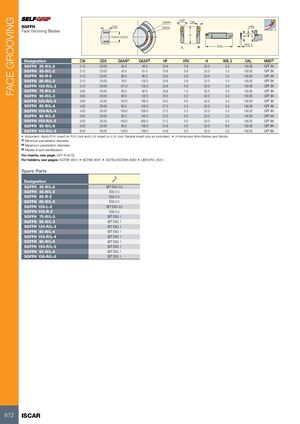

FACE GROOVING 150˚ DAXN CW SGFFH CDX DAXX HTA Face Grooving Blades H HF H DAXN-DAXX WB_2 L R OAL Designation CW CDX DAXN(1) DAXX(2) HF HTA H WB_2 OAL MIID(3) SGFFH 35-R/L-2 2.10 20.00 35.0 46.0 25.6 0.8 32.0 5.2 150.00 GFF 2N SGFFH 45-R/L-2 2.10 20.00 45.0 61.0 25.6 0.8 32.0 5.2 150.00 GFF 2N SGFFH 60-R-2 2.10 20.00 60.0 80.0 25.6 0.8 32.0 5.2 150.00 GFF 2N SGFFH 80-R/L-2 2.10 20.00 79.0 102.0 25.6 0.8 32.0 4.0 150.00 GFF 2N SGFFH 100-R/L-2 2.10 20.00 101.0 132.0 24.9 0.0 32.0 4.0 150.00 GFF 2N SGFFH 75-R/L-3 3.00 20.00 65.0 92.0 25.8 1.0 32.0 5.2 150.00 GFF 3N SGFFH 90-R/L-3 3.00 20.00 90.0 122.0 25.0 0.2 32.0 5.2 150.00 GFF 3N SGFFH 120-R/L-3 3.00 25.00 120.0 160.0 25.0 0.0 32.0 5.2 150.00 GFF 3N SGFFH 80-R/L-4 4.00 30.00 80.0 155.0 27.3 2.5 32.0 5.2 150.00 GFF 4N SGFFH 150-R/L-4 4.00 30.00 150.0 500.0 27.3 2.5 32.0 5.2 150.00 GFF 4N SGFFH 80-R/L-5 5.00 32.00 80.0 162.0 27.3 0.0 32.0 5.2 150.00 GFF 5N SGFFH 150-R/L-5 5.00 35.00 150.0 600.0 27.3 0.0 32.0 5.2 150.00 GFF 5N SGFFH 90-R/L-6 6.00 32.00 90.0 150.0 24.9 0.0 32.0 8.0 150.00 GFF 6N SGFFH 150-R/L-6 6.00 35.00 148.0 700.0 24.9 0.0 32.0 5.2 150.00 GFF 6N • Important: Apply R.H. insert on R.H. tool and L.H. insert on L.H. tool. Neutral insert only as indicated • H dimension links blades and blocks (1) Minimum penetration diameter (2) Maximum penetration diameter (3) Master insert identification For inserts, see page: GFF-N (673) For holders, see pages: SGTBF (691) • SGTBK (691) • SGTBU/SGTBN (690) • UBHCR/L (691) Spare Parts Designation SGFFH 35-R/L-2 SET ESG 0.5 SGFFH 45-R/L-2 ESG 0.5 SGFFH 60-R-2 ESG 0.5 SGFFH 80-R/L-2 ESG 0.5 SGFFH 100-L-2 SET ESG 0.5 SGFFH 100-R-2 ESG 0.5 SGFFH 75-R/L-3 SET ESG 1 SGFFH 90-R/L-3 SET ESG 1 SGFFH 120-R/L-3 SET ESG 1 SGFFH 80-R/L-4 SET ESG 1 SGFFH 150-R/L-4 SET ESG 1 SGFFH 80-R/L-5 SET ESG 1 SGFFH 150-R/L-5 SET ESG 1 SGFFH 90-R/L-6 SET ESG 1 SGFFH 150-R/L-6 SET ESG 1 672 ISCAR
