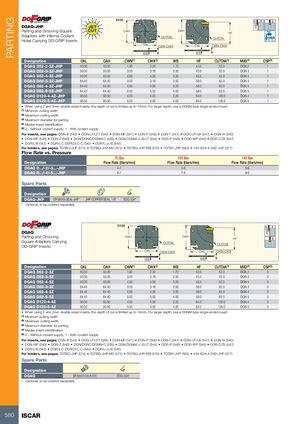

PARTING D120 TWISTED 2-SIDED DGAQ-JHP Parting and Grooving Square OAH OAH HF Adapters with Internal Coolant CUTDIA CUTDIA Holes Carrying DO-GRIP Inserts Bar Max OAL CWN-CWX OAL CWN-CWX WB WB Designation OAL OAH CWN(1) CWX(2) WB HF CUTDIA(3) MIID(4) CSP(5) DGAQ D52-2-2Z-JHP 50.00 50.00 1.90 2.50 1.72 43.5 52.0 DGN 2 1 DGAQ D52-3-2Z-JHP 50.00 50.00 3.00 3.18 2.50 43.5 52.0 DGN 3 1 DGAQ D52-4-2Z-JHP 50.00 50.00 4.00 4.00 3.20 43.5 52.0 DGN 4 1 DGAQ D82-3-2Z-JHP 64.40 64.40 3.00 3.18 2.50 58.0 82.0 DGN 3 1 DGAQ D82-4-2Z-JHP 64.40 64.40 4.00 4.00 3.20 58.0 82.0 DGN 4 1 DGAQ D82-5-2Z-JHP 64.40 64.40 5.00 5.00 4.00 58.0 82.0 DGN 5 1 DGAQ D120-4-4Z-JHP 90.50 90.50 4.00 4.00 3.20 84.0 120.0 DGN 4 1 DGAQ D120-5-4Z-JHP 90.50 90.50 5.00 5.00 4.00 84.0 120.0 DGN 5 1 • When using 2 and 3mm double-sided inserts, the depth of cut is limited up to 19mm. For larger depth, use a DGNM type single-ended insert. (1) Minimum cutting width (2) Maximum cutting width (3) Maximum diameter for parting (4) Master insert identification (5) 0 - Without coolant supply, 1 - With coolant supply For inserts, see pages: DGN-B (542) • DGN-LF/LFT (546) • DGN-MF (541) • DGN-P (548) • DGN-T (541) • DGN-UT/UA (547) • DGN-W (540) • DGN-WP (549) • DGN-Z (546) • DGN/DGNC/DGNM-C (539) • DGN/DGNM-J/JS/JT (544) • DGR-P (548) • DGR-WP (549) • DGR-Z/ZS (547) • DGR/L-B (542) • DGR/L-C DGRC/LC-C (540) • DGR/L-J/JS (545) For holders, see pages: TGTBQ-JHP (574) • TGTBQ-JHP-MC (575) • TGTBQ-JHP-RIB (576) • TGTBY-JHP (583) • V## SQ#-#-D82-JHP (577) Flow Rate vs. Pressure 70 Bar 100 Bar 140 Bar Designation Flow Rate (liters/min) Flow Rate (liters/min) Flow Rate (liters/min) DGAQ D.../-2/-3...-JHP 4-7 5-8 6-9 DGAQ D.../-4/-5...-JHP 6-7 7-8 8-9 Spare Parts Designation DGAQ-JHP SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" EDG 33A* * Optional, to be ordered separately D120 TWISTED 2-SIDED DGAQ Parting and Grooving OAH OAH HF Square Adapters Carrying CUTDIA CUTDIA DO-GRIP Inserts OAL CWN-CWX OAL CWN-CWX WB WB Designation OAL OAH CWN(1) CWX(2) WB HF CUTDIA(3) MIID(4) CSP(5) DGAQ D52-2-2Z 50.00 50.00 1.90 2.50 1.72 43.5 52.0 DGN 2 0 DGAQ D52-3-2Z 50.00 50.00 3.00 3.18 2.50 43.5 52.0 DGN 3 0 DGAQ D52-4-2Z 50.00 50.00 4.00 4.00 3.20 43.5 52.0 DGN 4 0 DGAQ D82-3-2Z 64.40 64.40 3.00 3.18 2.50 58.0 82.0 DGN 3 0 DGAQ D82-4-2Z 64.40 64.40 4.00 4.00 3.20 58.0 82.0 DGN 4 0 DGAQ D82-5-2Z 64.40 64.40 5.00 5.00 4.00 58.0 82.0 DGN 5 0 DGAQ D120-4-4Z 90.50 90.50 4.00 4.00 3.20 84.0 120.0 DGN 4 0 DGAQ D120-5-4Z 90.50 90.50 5.00 5.00 4.00 84.0 120.0 DGN 5 0 • When using 2 and 3mm double-sided inserts, the depth of cut is limited up to 19mm. For larger depth, use a DGNM type single-ended insert. (1) Minimum cutting width (2) Maximum cutting width (3) Maximum diameter for parting (4) Master insert identification (5) 0 - Without coolant supply, 1 - With coolant supply For inserts, see pages: DGN-B (542) • DGN-LF/LFT (546) • DGN-MF (541) • DGN-P (548) • DGN-T (541) • DGN-UT/UA (547) • DGN-W (540) • DGN-WP (549) • DGN-Z (546) • DGN/DGNC/DGNM-C (539) • DGN/DGNM-J/JS/JT (544) • DGR-P (548) • DGR-WP (549) • DGR-Z/ZS (547) • DGR/L-B (542) • DGR/L-C DGRC/LC-C (540) • DGR/L-J/JS (545) For holders, see pages: TGTBQ-JHP (574) • TGTBQ-JHP-MC (575) • TGTBQ-JHP-RIB (576) • TGTBY-JHP (583) • V## SQ#-#-D82-JHP (577) Spare Parts Designation DGAQ SR M4X10-8.8-T20 EDG 33A* * Optional, to be ordered separately 580 ISCAR
