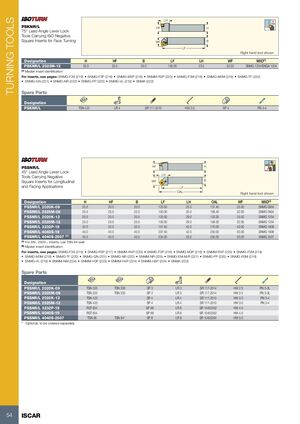

TURNING TOOLS LH 75º PSKNR/L HF H 75° Lead Angle Lever Lock Tools Carrying ISO Negative Square Inserts for Face Turning WF B LF Right hand tool shown Designation H HF B LF LH WF MIID(1) PSKNR/L 2525M-12 25.0 25.0 25.0 150.00 23.5 32.00 SNMG 1204/SNGA 1204 (1) Master insert identification For inserts, see pages: SNMG-F3S (219) • SNMG-F3P (216) • SNMG-M3P (216) • SNMM-R3P (223) • SNMG-F3M (218) • SNMG-M3M (218) • SNMG-TF (220) • SNMG-GN (221) • SNMG-NR (222) • SNMG-PP (220) • SNMG-VL (219) • SNMA (222) Spare Parts Designation PSKNR/L TSN 423 LR 4 SR 117-2010 HW 3.0 SP 4 PN 3-4 45º 45º PSSNR/L HF H 45° Lead Angle Lever Lock LH Tools Carrying Negative B Square Inserts for Longitudinal WF and Facing Applications LF OAL Right hand tool shown Designation H HF B LF LH OAL WF MIID(2) PSSNR/L 2020K-09 20.0 20.0 20.0 125.00 25.0 131.40 25.00 SNMG 0904 PSSNR/L 2525M-09 25.0 25.0 25.0 150.00 25.0 156.40 32.00 SNMG 0904 PSSNR/L 2020K-12 20.0 20.0 20.0 125.00 29.0 133.30 25.00 SNMG 1204 PSSNR/L 2525M-12 25.0 25.0 25.0 150.00 29.0 158.30 32.00 SNMG 1204 PSSNR/L 3232P-19 32.0 32.0 32.0 157.50 42.0 170.00 40.00 SNMG 1906 PSSNR/L 4040S-19 40.0 40.0 40.0 237.50 42.0 250.00 50.00 SNMG 1906 PSSNR/L 4040S-2507 (1) 40.0 40.0 40.0 234.00 53.0 250.00 50.00 SNMG 2507 (1) For SN.. 2509... inserts, use TSN 84 seat (2) Master insert identification For inserts, see pages: SNMG-F3S (219) • SNMG-R3P (217) • SNMM-R4P (223) • SNMG-F3P (216) • SNMG-M3P (216) • SNMM-R3P (223) • SNMG-F3M (218) • SNMG-M3M (218) • SNMG-TF (220) • SNMG-GN (221) • SNMG-NR (222) • SNMM-NR (225) • SNMG-EM-M/R (221) • SNMG-PP (220) • SNMG-R3M (219) • SNMG-VL (219) • SNMM-NM (224) • SNMM-H3P (223) • SNMM-H4P (224) • SNMM-H5P (224) • SNMA (222) Spare Parts Designation PSSNR/L 2020K-09 TSN 323 TSN 333 SP 3 LR 3 SR 117-2014 HW 2.5 PN 3-3L PSSNR/L 2525M-09 TSN 323 TSN 333 SP 3 LR 3 SR 117-2014 HW 2.5 PN 3-3L PSSNR/L 2020K-12 TSN 423 SP 4 LR 4 SR 117-2010 HW 3.0 PN 3-4 PSSNR/L 2525M-12 TSN 423 SP 4 LR 4 SR 117-2010 HW 3.0 PN 3-4 PSSNR/L 3232P-19 RST 634 SP 66 LR 6 SR 10402352 HW 4.0 PSSNR/L 4040S-19 RST 634 SP 66 LR 6 SR 10402352 HW 4.0 PSSNR/L 4040S-2507 TSN 85 TSN 84* SP 8 LR 8 SR 10402264 HW 5.0 * Optional, to be ordered separately 54 ISCAR
