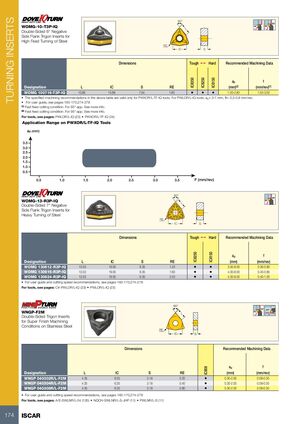

TURNING INSERTS 80° 95° WOMG-10-T3P-IQ L 18° 95° Double-Sided 6° Negative Side Flank Trigon Inserts for High Feed Turning of Steel RE IC S Dimensions Tough 1 Hard Recommended Machining Data IC8350 IC8250 IC8150 ap f Designation L IC S RE (mm)(2) (mm/rev)(1) WOMG 100716-T3P-IQ 10.86 15.88 7.94 1.60 • • • 1.00-2.80 1.50-3.00 • The specified machining recommendations in the above table are valid only for PWXOR/L-TF-IQ tools. For PWLOR/L-IQ tools: ap= 3-7 mm, ft= 0.3-0.8 mm/rev. • For user guide, see pages 160-170,274-278 (1) Fast feed cutting condition. For 95° app. See more info. (2) Fast feed cutting condition. For 95° app. See more info. For tools, see pages: PWLOR/L-IQ (23) • PWXOR/L-TF-IQ (24) Application Range on PWXOR/L-TF-IQ Tools ap (mm) 3.5 3.0 2.5 2.0 1.5 1.0 0.5 0.5 1.0 1.5 2.0 2.5 3.0 3.5 F (mm/rev) 80° 95° WOMG-13-R3P-IQ L 95° Double-Sided 7° Negative Side Flank Trigon Inserts for Heavy Turning of Steel RE IC S Dimensions Tough 1 Hard Recommended Machining Data IC8250 IC8150 ap f Designation L IC S RE (mm) (mm/rev) WOMG 130612-R3P-IQ 13.03 19.05 6.35 1.20 • • 3.50-8.00 0.30-0.80 WOMG 130616-R3P-IQ 13.03 19.05 6.35 1.60 • • 4.00-8.00 0.40-0.85 WOMG 130624-R3P-IQ 13.03 19.05 6.35 2.40 • • 4.00-8.00 0.40-1.00 • For user guide and cutting speed recommendations, see pages 160-170,274-278 For tools, see pages: C#-PWLOR/L-IQ (23) • PWLOR/L-IQ (23) 80° 95° 95º WNGP-F2M L 95° Double-Sided Trigon Inserts for Super Finish Machining Conditions on Stainless Steel RE IC S Dimensions Recommended Machining Data ap f IC908 Designation L IC S RE (mm) (mm/rev) WNGP 040302R/L-F2M 4.35 6.35 3.18 0.20 • 0.30-2.00 0.08-0.30 WNGP 040304R/L-F2M 4.35 6.35 3.18 0.40 • 0.30-2.00 0.08-0.30 WNGP 040308R/L-F2M 4.35 6.35 3.18 0.80 • 0.30-2.00 0.08-0.30 • For user guide and cutting speed recommendations, see pages 160-170,274-278 For tools, see pages: A/E-SWLNR/L-04 (135) • NQCH-SWLNR/L-S-JHP (11) • PWLNR/L-S (11) 174 ISCAR
