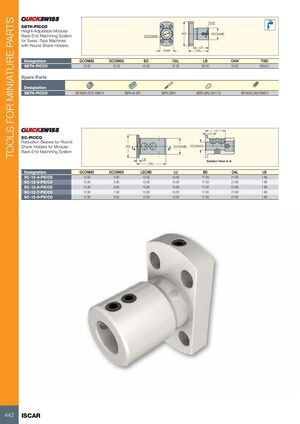

TOOLS FOR MINIATURE PARTS THID SBTH-PICCO Height-Adjustable Modular BD DCONMS Back-End Machining System DCONWS for Swiss -Type Machines with Round Shank Holders LB OAW OAL Designation DCONMS DCONWS BD OAL LB OAW THID SBTH-PICCO 22.00 12.00 45.00 37.00 28.00 24.00 M5x0.5 Spare Parts Designation SBTH-PICCO SR M5X0.5X16 DIN913 SBTA-IK-SP1 SBTA-ZEN1 SBTA-QR5.28X1.78 SR M5X0.5X8 DIN913 LU 5.8 SC-PICCO Reduction Sleeves for Round Shank Holders for Modular BD DCONMS DCONWS A A Back-End Machining System LB Section View A-A OAL Designation DCONMS DCONWS LSCMS LU BD OAL LB SC-12-4-PICCO 12.00 4.00 15.00 15.00 17.00 21.80 1.80 SC-12-5-PICCO 12.00 5.00 15.00 15.00 17.00 21.80 1.80 SC-12-6-PICCO 12.00 6.00 15.00 15.00 17.00 21.80 1.80 SC-12-7-PICCO 12.00 7.00 15.00 15.00 17.00 21.80 1.80 SC-12-8-PICCO 12.00 8.00 15.00 15.00 17.00 21.80 1.80 442 ISCAR
