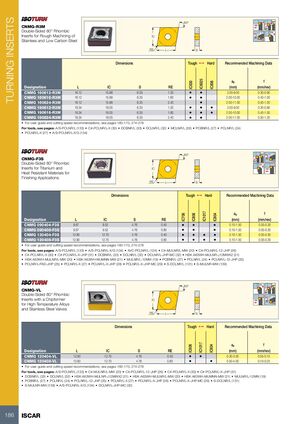

TURNING INSERTS 80° 95º CNMG-R3M 75º 95º Double-Sided 80° Rhombic 75° Inserts for Rough Machining of IC 95º Stainless and Low Carbon Steel RE L S Dimensions Tough 1 Hard Recommended Machining Data ap f IC6025 IC830 IC806 Designation L IC S RE (mm) (mm/rev) CNMG 160612-R3M 16.12 15.88 6.35 1.20 • • 2.00-9.00 0.30-0.90 CNMG 160616-R3M 16.12 15.88 6.35 1.60 • • 2.00-10.00 0.40-1.00 CNMG 160624-R3M 16.12 15.88 6.35 2.40 • 2.00-11.00 0.50-1.20 CNMG 190612-R3M 19.34 19.05 6.35 1.20 • • • 2.00-9.00 0.30-0.90 CNMG 190616-R3M 19.34 19.05 6.35 1.60 • • • 2.00-10.00 0.40-1.00 CNMG 190624-R3M 19.34 19.05 6.35 2.40 • • 2.00-11.00 0.50-1.20 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PCLNR/L (133) • C#-PCLNR/L-X (30) • DCBNR/L (33) • DCLNR/L (32) • MCLNR/L (26) • PCBNR/L (27) • PCLNR/L (24) • PCLNR/L-X (27) • A/S-PCLNR/L-X/G (134) 80° 95º CNMG-F3S 95º 95º Double-Sided 80° Rhombic 75° Inserts for Titanium and IC 75º Heat Resistant Materials for Finishing Applications RE L S Dimensions Tough 1 Hard Recommended Machining Data ap f IC1017 IC706 IC806 IC804 Designation L IC S RE (mm) (mm/rev) CNMG 090404-F3S 9.67 9.52 4.76 0.40 • • • 0.10-1.50 0.05-0.30 CNMG 090408-F3S 9.67 9.52 4.76 0.80 • • • 0.10-1.50 0.05-0.30 CNMG 120404-F3S 12.90 12.70 4.76 0.40 • • • • 0.10-1.50 0.05-0.30 CNMG 120408-F3S 12.90 12.70 4.76 0.80 • • • • 0.10-1.50 0.05-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PCLNR/L (133) • A/S-PCLNR/L-X/G (134) • AVC-PCLNR/L (124) • C#-MULNR/L-MW (20) • C#-PCLNR/L-12-JHP (26) • C#-PCLNR/L-X (30) • C#-PCLNR/L-X-JHP (31) • DCBNR/L (33) • DCLNR/L (32) • DCLNR/L-JHP-MC (32) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • PCBNR/L (27) • PCLNR/L (24) • PCLNR/L-12-JHP (25) • PCLNR/L-PAD-JHP (25) • PCLNR/L-X (27) • PCLNR/L-X-JHP (28) • PCLNR/L-X-JHP-MC (29) • S-DCLNR/L (131) • S-MULNR-MW (139) 75° 95º 80° CNMG-VL 95º Double-Sided 80° Rhombic Inserts with a Chipformer IC 75º 95º for High Temperature Alloys and Stainless Steel Valves RE L S Dimensions Tough 1 Hard Recommended Machining Data ap f IC1017 IC806 IC804 Designation L IC S RE (mm) (mm/rev) CNMG 120404-VL 12.90 12.70 4.76 0.40 • • 0.30-3.00 0.05-0.15 CNMG 120408-VL 12.90 12.70 4.76 0.80 • • 0.50-4.00 0.10-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PCLNR/L (133) • C#-MULNR/L-MW (20) • C#-PCLNR/L-12-JHP (26) • C#-PCLNR/L-X (30) • C#-PCLNR/L-X-JHP (31) • DCBNR/L (33) • DCLNR/L (32) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • PCBNR/L (27) • PCLNR/L (24) • PCLNR/L-12-JHP (25) • PCLNR/L-X (27) • PCLNR/L-X-JHP (28) • PCLNR/L-X-JHP-MC (29) • S-DCLNR/L (131) • S-MULNR-MW (139) • A/S-PCLNR/L-X/G (134) • DCLNR/L-JHP-MC (32) 186 ISCAR
