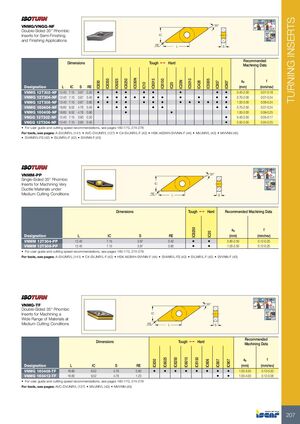

TURNING INSERTS 50° 70°MAX MAX VNMG/VNGG-NF 35° 93° 72.5º Double-Sided 35° Rhombic 93º Inserts for Semi-Finishing IC 50° and Finishing Applications MAX RE L S Recommended Dimensions Tough 1 Hard Machining Data IC530N ap f IC8350 IC6025 IC8250 IC6015 IC8150 IC5010 IC5005 IC20N IC830 IC428 IC807 IC907 IC10 IC20 Designation L IC S RE (mm) (mm/rev) VNMG 12T302-NF 12.40 7.15 3.97 0.20 • • • • • • • • 0.40-2.50 0.07-0.18 VNMG 12T304-NF 12.40 7.15 3.97 0.40 • • • • • • • • • • • • 0.70-2.00 0.07-0.24 VNMG 12T308-NF 12.40 7.15 3.97 0.80 • • • • • • • • • • • • • 1.00-3.00 0.08-0.24 VNMG 160404-NF 16.60 9.52 4.76 0.40 • • • • • • • 0.70-2.50 0.07-0.24 VNMG 160408-NF 16.60 9.52 4.76 0.80 • • 1.00-3.00 0.08-0.25 VNGG 12T302-NF 12.40 7.15 3.90 0.20 • 0.40-2.50 0.05-0.17 VNGG 12T304-NF 12.40 7.15 3.90 0.40 • 0.50-3.00 0.05-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-SVUNR/L (141) • AVC-DVUNR/L (127) • C#-SVJNR/L-F (42) • HSK A63WH-SVVNN-F (44) • MVJNR/L (43) • MVVNN (45) • SVANR/L-FS (42) • SVJNR/L-F (42) • SVVNN-F (43) 50° 70°MAX MAX VNMM-PP 35° 93° 72.5º Single-Sided 35° Rhombic 93º Inserts for Machining Very IC 50° Ductile Materials under MAX Medium Cutting Conditions RE L S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC20 Designation L IC S RE (mm) (mm/rev) VNMM 12T304-PP 12.40 7.15 3.97 0.40 • • 0.80-2.50 0.12-0.20 VNMM 12T308-PP 12.40 7.15 3.97 0.80 • • 1.00-2.50 0.12-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-SVUNR/L (141) • C#-SVJNR/L-F (42) • HSK A63WH-SVVNN-F (44) • SVANR/L-FS (42) • SVJNR/L-F (42) • SVVNN-F (43) 50° 70°MAX MAX VNMG-TF 35° 93° 72.5º Double-Sided 35° Rhombic 93º Inserts for Machining a IC 50° Wide Range of Materials at MAX Medium Cutting Conditions RE L S Recommended Dimensions Tough 1 Hard Machining Data ap f IC6025 IC8250 IC6015 IC8150 IC830 IC806 IC807 IC907 Designation L IC S RE (mm) (mm/rev) VNMG 160408-TF 16.60 9.52 4.76 0.80 • • • • • • • • 1.00-3.50 0.10-0.30 VNMG 160412-TF 16.60 9.52 4.76 1.20 • • 1.00-4.00 0.12-0.38 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: AVC-DVUNR/L (127) • MVJNR/L (43) • MVVNN (45) 207
